Unveiling Hidden Patterns in the Cryptocurrency Market with Affinity Propagation and Python

Florian Follonier — Mon, 02 May 2022 18:34:02 +0000

Affinity propagation is a powerful unsupervised clustering technique that can identify hidden patterns in large datasets. In the cryptocurrency world, where new coins are constantly emerging and prices can be highly volatile, affinity propagation can help investors simplify the chaos.

By analyzing historical price data, affinity propagation groups coins into clusters based on their past price fluctuations. Such a cluster analysis enables crypto investors to identify promising entry and exit points, ultimately helping them make smarter investment decisions.

To use this technique effectively, it’s important to understand essential concepts such as covariance, lasso regression, and affinity propagation. Once you understand these concepts, you can apply them to analyze price time series data and identify hidden patterns.

Finally, visualizing the results in two and three dimensions can better understand the relationships between coins and their respective clusters. The resulting crypto market map can be a powerful tool for investors to gain insight into the market’s structure and make informed investment decisions.

Disclaimer

This article does not constitute financial advice. Stock markets can be very volatile and are generally difficult to predict. Predictive models and other forms of analytics applied in this article only serve the purpose of illustrating machine learning use cases.

What is Stock Market Clustering?

Clustering stock markets refers to grouping stocks based on their similarities or common characteristics. This can be done using various clustering algorithms, which analyze the data and assign each stock market to a cluster based on its similarity to other stock markets in the same cluster. In this article, we will run a cluster analysis on historical time series data. This approach involves grouping stocks into clusters based on their historical performance over a certain period of time.

Clustering stock market data can be useful for a variety of purposes, such as identifying patterns or trends in the data, comparing the performance of different stocks or sectors, or generating investment recommendations. However, it’s important to keep in mind that clustering is just one tool among many for analyzing stock market data, and it’s important to consider a range of factors when making investment decisions. It can also be used to compare the performance of different stock markets and identify potential risks or correlations between them.

Also: Color-Coded Cryptocurrency Price Charts in Python

neural network machine learning python affinity propagation midjourney relataly crypto-min

" data-image-caption="

neural network machine learning python affinity propagation midjourney relataly crypto-min

" data-large-file="https://www.relataly.com/wp-content/uploads/2023/03/neural-network-machine-learning-python-affinity-propagation-midjourney-relataly-crypto-min.png" src="https://www.relataly.com/wp-content/uploads/2023/03/neural-network-machine-learning-python-affinity-propagation-midjourney-relataly-crypto-min.png" alt="neural network machine learning python midjourney relataly crypto market map" class="wp-image-12694" srcset="https://www.relataly.com/wp-content/uploads/2023/03/neural-network-machine-learning-python-affinity-propagation-midjourney-relataly-crypto-min.png 509w, https://www.relataly.com/wp-content/uploads/2023/03/neural-network-machine-learning-python-affinity-propagation-midjourney-relataly-crypto-min.png 300w, https://www.relataly.com/wp-content/uploads/2023/03/neural-network-machine-learning-python-affinity-propagation-midjourney-relataly-crypto-min.png 140w" sizes="(max-width: 509px) 100vw, 509px" />

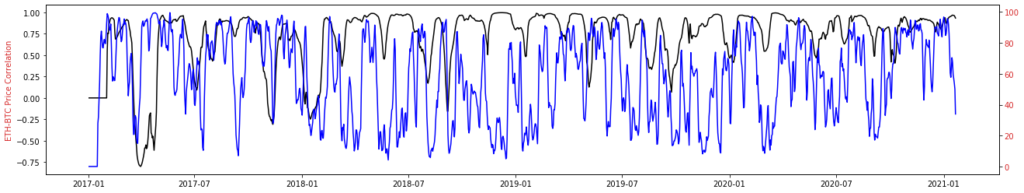

We can use a crypto market map to illustrate the price correlation between cryptocurrencies.

What’s the Problem with Prototype-based Clustering?

Clustering is an unsupervised learning technique that groups similar objects into clusters and separates them from different ones. One of the most popular clustering techniques is k-means. K-means belongs to the so-called prototype-based clustering techniques, which divide data points into a predefined number of groups (in the case of k-means, the groups are of equal variance).

The prototype-based clustering approach works great if the number of clusters in a dataset is known and the clusters have similar despair. However, when we deal with real-world problems, we often encounter more complex data for which the optimal number of clusters is unknown and difficult or even impossible to guess. In such a case, affinity propagation has a significant advantage because it can automatically estimate the number of clusters.

Affinity Propagation: What it is and How it Works

The idea of affinity propagation is to identify clusters by measuring the similarity of data points relative to one another. The algorithm chooses data points as cluster centers that best represent other data points near them.

We can imagine the process of identifying these representative data points as an election. Each data point (i) is a voter who casts votes and a candidate (k) who can receive votes from other voters. Votes are a measure of the similarity of data points. A voter who gives many votes to a candidate expresses that this data point is similar to him and therefore is suitable for representing him as a cluster center. The voting process continues until the algorithm reaches a consensus and selects a set number of cluster candidates.

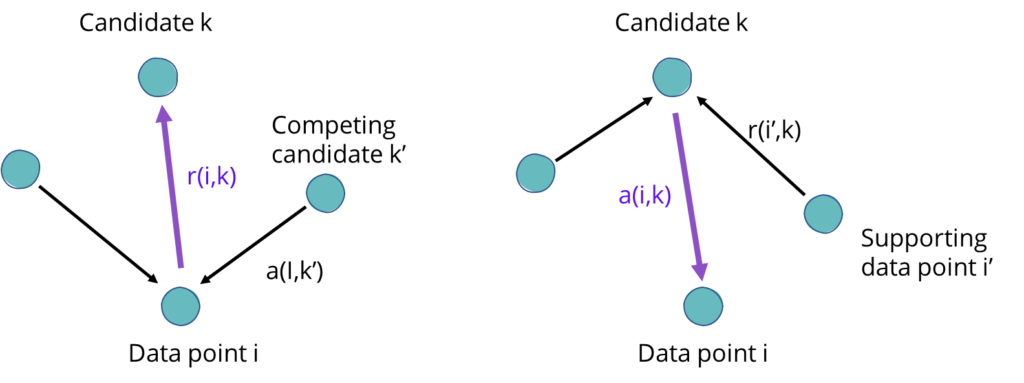

Affinity Propagation: Data points cast votes for candidates and receive votes from other data points

The clustering process involves many separate steps (This article provides a detailed description of the steps involved) and works with several matrices:

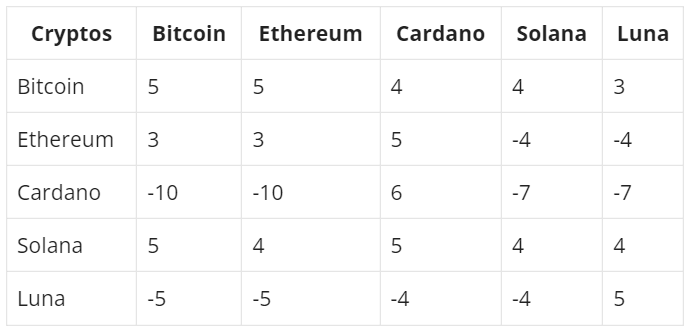

The similarity matrix assesses the suitability of data points (candidates) to act as cluster centers.
The availability matrix (or responsibility matrix) collects the support of the data points for the candidates (potential cluster centers) and their suitability to represent them.
The criterion matrix sums up the results and defines the clusters. Data points with equal scores in the criterion matrix are considered part of the same cluster.

Criterion Matrix: Data Points (Cryptos) with equal numbers are part of the same cluster

Time Series Clustering using Affinity Propagation – Visualizing Cryptocurrency Market Structures in Python

Ready to implement affinity propagation in Python to analyze the crypto market structure and create a visual representation of price similarity? Let’s dive in!

First, we define a portfolio of cryptocurrencies and download their historical price quotes from coinmarketcap. We then visualize the time series on separate line charts to ensure that the data has been loaded successfully. After preparing and cleaning the data, we can move on to clustering the cryptocurrencies into groups with similar price movements using Affinity Propagation.

Unlike other clustering algorithms, we don’t set the number of clusters in advance. Instead, we let affinity propagation determine the optimal number of clusters for our portfolio. Finally, we calculate the covariance matrix between clusters and arrange the cryptocurrencies on a 2D map into clusters. We create a network overlay based on covariance to better understand the relationships between different clusters.

With affinity propagation, we can identify hidden patterns in the crypto market and group coins into clusters based on their past price fluctuations. This process allows us to identify promising entry and exit points, ultimately helping us make smarter investment decisions. Plus, the 2D map and network overlay help us visualize the relationships between different clusters and coins.

We can use affinity propagation to cluster financial assets and visualize them on a map.

The Python code for this tutorial is available in the relataly repository on GitHub.

View on GitHub Relataly GitHub Repo

Prerequisites

Before beginning the coding part, ensure that you have set up your Python 3 environment and required packages. Consider Anaconda if you don’t have a Python environment set up yet. To set it up, you can follow the steps in this tutorial. Also, make sure you install all required packages. In this tutorial, we will be working with the following standard packages:

Please also make sure you have the Cmcscaper package installed. We will be using it to download past crypto prices from coinmarketcap.

You can install these packages using console commands:

pip install
conda install (if you are using the anaconda packet manager)

Step #1: Load the Stock Market Data

We start by loading historical crypto price data from Coinmarketcap. To download the data, we use Cmcscraper, a Python library that allows us to collect Coinmarketcap data without signing up for the official API.

The download returns a dataframe with daily price quotes (Close, Open, Avg) for cryptocurrencies between 2016 and today. You can use the dictionary (“symbol_dict”) to control which cryptos you want to include in the data. We limit the data we use in our cluster analysis to the last 50 days. In this way, we let the correlation consider earlier price developments. But it’s up to you to specify a different period. In addition, instead of using absolute price values, we will use daily percentage fluctuations.

Also: Requesting Crypto Price Data from the Gate.io REST API in Python

Loading the data can take several minutes, depending on how many cryptocurrencies we include in the request. So it makes sense not to load the data every time you run the code. Therefore, the code below stores the historical prices in a CSV file.

The script will check if the data already exists if you run the code below. If it does, it will use the data from the CSV file. Otherwise, it will load a fresh copy of the data from coinmarketcap.

# A tutorial for this file is available at www.relataly.com
# Tested with Python 3.8.8, Matplotlib 3.5, Scikit-learn 0.24.1, Seaborn 0.11.1, numpy 1.19.5

from cryptocmd import CmcScraper
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from sklearn import cluster, covariance, manifold
import requests
import json


#get a dictionary of the top 100 coin symbols and names from an API
def get_symbol_dict():
    url = 'https://api.coinmarketcap.com/data-api/v3/cryptocurrency/listing?start=1&limit=50&sortBy=market_cap&sortType=desc&convert=USD&cryptoType=all&tagType=all&audited=false'
    response = requests.get(url)
    data = json.loads(response.text)
    df = pd.DataFrame(data['data']['cryptoCurrencyList'])

    # exclude stable coins
    df = df[~df['symbol'].isin(['USDT', 'USDC', 'BUSD', 'DAI', 'TUSD', 'PAX', 'GUSD', 'HUSD', 'USDK', 'USDS', 'USDP', 'USDN', 'USDSB', 'USDX', 'USD++', 'BIDR', 'IDRT', 'VAI', 'BGBP'])]
    df = df[['symbol', 'name']]
    df = df.set_index('symbol')
    df = df.to_dict()
    df = df['name']
    return df

symbol_dict = get_symbol_dict()


# Download historic crypto prices via CmcScraper
def load_fresh_data_and_save_to_disc(symbol_dict, save_path):
    # Extract symbols and names from the symbol_dict
    symbols, names = np.array(sorted(symbol_dict.items())).T

    # Initialize an empty DataFrame for storing the prices
    df_crypto = pd.DataFrame()

    # Download and process the price data for each symbol
    for symbol in symbols:
        print(f"Fetching prices for {symbol}...")

        # Download the price data using CmcScraper
        scraper = CmcScraper(symbol)
        df_coin_prices = scraper.get_dataframe()

        # Process the price data and add it to df_crypto
        df = pd.DataFrame({
            f"{symbol}_Open": df_coin_prices["Open"],
            f"{symbol}_Close": df_coin_prices["Close"],
            f"{symbol}_Avg": (df_coin_prices["Close"] + df_coin_prices["Open"]) / 2,
            f"{symbol}_p": (df_coin_prices["Open"] - df_coin_prices["Close"]) / df_coin_prices["Open"]
        })
        df_crypto = pd.concat([df_crypto, df], axis=1)

    # Save the price data to a CSV file
    X_df_filtered = df_crypto.filter(like="_p")
    X_df_filtered.to_csv(save_path + "historical_crypto_prices.csv")

    return names, symbols, X_df_filtered


# If set to False the data will only be downloaded when you execute the code
# Set to True, if you want a fresh copy of the data.
fetch_new_data = True
save_path = '' # path where the price data will be stored in a csv file

# Fetch fresh data via the scraping package, or use data from the csv file on disk
if fetch_new_data == False:
    try:
        print('loading from disk')
        X_df_filtered = pd.read_csv(save_path + 'historical_crypto_prices.csv')
        if 'Unnamed: 0' in X_df_filtered.columns:
            X_df_filtered = X_df_filtered.drop(['Unnamed: 0'], axis=1)
            symbols, names = np.array(sorted(symbol_dict.items())).T
        print(list(X_df_filtered.columns))
    except:
        print('no existing price data found - loading fresh data from coinmarketcap and saving them to disk')
        names, symbols, X_df_filtered = load_fresh_data_and_save_to_disc(symbol_dict, save_path)
        print(list(symbols))
else:
       print('loading fresh data from coinmarketcap and saving them to disk')
       names, symbols, X_df_filtered = load_fresh_data_and_save_to_disc(symbol_dict, save_path)
       print(list(symbols))

# Limit the price data to the last t days
t= 14 # in days
X_df_filtered = X_df_filtered[:t]
X_df_filtered.head()

	ACM_p		ADA_p		ARK_p		ATM_p		ATOM_p		AVAX_p		BAT_p		BCH_p		BLZ_p		BNB_p		...	THETA_p		UNI_p		USDT_p		VET_p		WAVES_p		XLM_p		XMR_p		XRP_p		ZIL_p		ZRX_p
0	0.031987	-0.037645	-0.005702	0.030928	-0.005897	-0.012404	-0.012262	-0.022529	0.008072	-0.007111	...	-0.021994	-0.023758	-0.000103	-0.021024	-0.015416	-0.004096	-0.022988	-0.027397	-0.016659	-0.012255
1	0.028192	0.065034	0.122306	0.010310	0.093558	0.106811	0.082863	0.075567	0.062105	0.054733	...	0.067264	0.081040	0.000136	0.077203	0.092987	0.078562	0.111519	0.071696	0.076484	0.085094
2	0.040771	0.016097	-0.133345	0.018963	0.011304	-0.033328	-0.007616	0.011458	-0.019993	0.005134	...	-0.005104	-0.024190	0.000077	0.002218	0.008920	0.004139	-0.031822	-0.012107	-0.003906	-0.021170
3	-0.027698	0.005129	-0.031516	-0.002639	0.022235	-0.008117	0.003969	0.019119	0.015403	0.005920	...	0.007992	0.027203	0.000003	0.000701	0.010739	0.005324	-0.007914	0.007168	0.004556	-0.003786
4	-0.021129	-0.019053	0.003273	-0.008121	0.002883	-0.004927	0.002548	-0.000599	0.028492	-0.012181	...	0.000198	-0.025817	-0.000047	-0.002800	-0.051515	-0.004861	0.015134	-0.000596	-0.010343	0.004530

The data looks good, so let’s continue.

Step #2 Plotting Crypto Price Charts

Now that the data is available, we can visualize it in various line graphs. The visualization helps us better understand what kind of data we are dealing with and check if the download was successful.

# Create Prices Charts for all Cryptocurrencies
list_length = X_df_filtered.shape[1]
ncols = 10
nrows = int(round(list_length / ncols, 0))
height = list_length/3 if list_length > 30 else 4
fig, axs = plt.subplots(nrows=nrows, ncols=ncols, sharex=True, sharey=True, figsize=(20, height))
for i, ax in enumerate(fig.axes):
        if i < list_length:
            sns.lineplot(data=X_df_filtered, x=X_df_filtered.index, y=X_df_filtered.iloc[:, i], ax=ax)
            ax.set_title(X_df_filtered.columns[i])
plt.show()

We can see the lineplots for all cryptocurrencies and everything looks as expected.

Step #3 Clustering Cryptocurrencies using Affinity Propagation

Next, we must prepare the data and run the affinity propagation algorithm. For some cryptocurrencies, we may encounter data that contains NaN values. Because clustering is sensitive to missing values, we must ensure good data quality. In addition, the Python code below will convert the DataFrame into a NumPy array and transpose it into a form where we have crypto assets as records and the days as columns.

Running the code below returns a dictionary of clusters with the cryptocurrencies assigned to them by the affinity propagation algorithm.

# Drop NaN values
X_df = pd.DataFrame(np.array(X_df_filtered)).dropna()
# Transpose the data to structure prices along columns
X = X_df.copy()
X /= X.std(axis=0)
X = np.array(X)
# Define an edge model based on covariance
edge_model = covariance.GraphicalLassoCV()
# Standardize the time series
edge_model.fit(X)
# Group cryptos to clusters using affinity propagation
# The number of clusters will be determined by the algorithm
cluster_centers_indices , labels = cluster.affinity_propagation(edge_model.covariance_, random_state=1)
cluster_dict = {}
n_labels = labels.max()
print(f"{n_labels} Clusters")
for i in range(n_labels + 1):
    clusters = ', '.join(names[labels == i])
    print('Cluster %i: %s' % ((i + 1), clusters))
    cluster_dict[i] = (clusters)

9 Clusters
Cluster 1: Binance Coin, Cake Defi
Cluster 2: Bitcoin Cash, Bitcoin, BitTorrent, Decred, EOS, Ethereum Classic, Ethereum, Ampleforth, Komodo, Solana, Sys Coin, DOT
Cluster 3: Celsius
Cluster 4: Doge Coin
Cluster 5: Cardano, ATOM, Avalance, Enjin, Internet Computer, Link, Loopring, Polygon, IOTA, NEO, Synthetix, Theta, Vechain
Cluster 6: Litecoin
Cluster 7: ACM Token, Atletico Madrid Token, Chilliz, Juventus Turin Token, PSG Token
Cluster 8: LRC
Cluster 9: Tether
Cluster 10: ARK, Battoken, BLZ, Digibyte, AS Rom Token, WAVES, Stellar Lumen, Monero, Ripple, Zilliqa, Zer0

We can see that the algorithm has identified 13 different clusters in the data and a couple of clusters with only a single member. You will most likely encounter different results depending on when you run it.

Step #4 Create a 2D Positioning Model based on the Graph Structure

In addition to clusters, we want to show the covariance between cryptocurrencies in our Crypto Market map. We need a graph-like structure that contains the covariance and position data of the cryptocurrencies for each crypto pair.

In addition, we use a node position model that calculates their relative position on a 2D plane from the covariance of the cryptocurrencies. However, the positions are only relative, so the absolute axes have no meaning.

# Create a node_position_model that find the best position of the cryptos on a 2D plane
# The number of components defines the dimensions in which the nodes will be positioned
node_position_model = manifold.LocallyLinearEmbedding(n_components=2, eigen_solver='dense', n_neighbors=20)
embedding = node_position_model.fit_transform(X.T).T
# The result are x and y coordindates for all cryptocurrencies
pd.DataFrame(embedding)
# Create an edge_model that represents the partial correlations between the nodes
partial_correlations = edge_model.precision_.copy()
d = 1 / np.sqrt(np.diag(partial_correlations))
partial_correlations *= d
partial_correlations *= d[:, np.newaxis]
# Only consider partial correlations above a specific threshold (0.02)
non_zero = (np.abs(np.triu(partial_correlations, k=1)) > 0.02)
# Convert the Positioning Model into a DataFrame
data = pd.DataFrame.from_dict({"embedding_x":embedding[0],"embedding_y":embedding[1]})
# Add the labels to the 2D positioning model
data["labels"] = labels
print(data.shape)
data.head()

(48, 3)
	embedding_x	embedding_y	labels
0	0.400590	-0.136473	6
1	-0.081908	-0.086039	4
2	-0.033982	-0.038526	9
3	0.416745	0.076849	6
4	-0.041938	0.031966	4

The next step is to create a graph of the partial correlations.

Step #5 Visualize the Crypto Market Structure

Our goal is to visualize differences in the covariance between crypto pairs by varying the connection strengths. We calculate the line strength by normalizing the covariance of the crypto pairs. In addition, we visualize the distribution of the covariance.

# Create an array with the segments for connecting the data points
start_idx, end_idx = np.where(non_zero)
segments = [[np.array([embedding[:, start], embedding[:, stop]]).T, start, stop] for start, stop in zip(start_idx, end_idx)]
# Create a normalized representation of partial correlation between crypto currencies
# We can later use covariance to vizualize the strength of the connections
pc = np.abs(partial_correlations[non_zero])
normalized = (pc-min(pc))/(max(pc)-min(pc))
# plot the distribution of covariance between the cryptocurrencies
sns.histplot(pc)

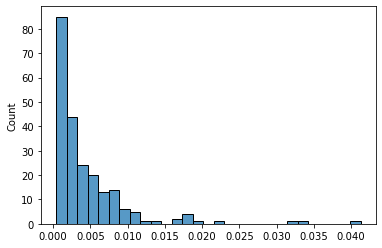

The hist plot shows that the covariance between the crypto pairs is mostly below 0.005.

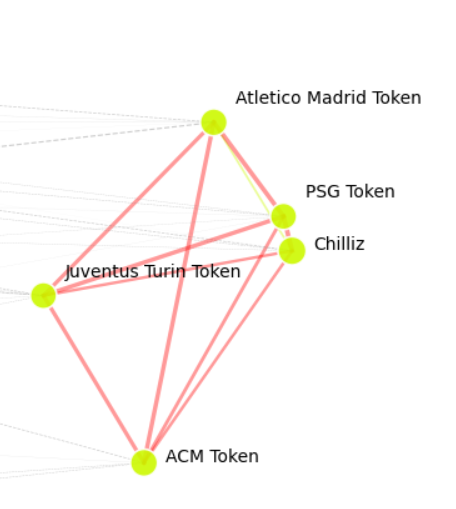

Finally, it is time to map cryptocurrencies on a 2D plane. To do this, we first define the cryptocurrencies using their relative position data with a scatterplot. We set the color of the points based on their clusters so that points in the same cluster are colored the same. Subsequently, we connect the points to the data from the edge model. The covariance between the crypto pairs determines the strength of their connections.

We also define the color of the connections as follows.

The map only shows connections with a covariance greater than 0.002.
Connections with a covariance greater than 0.05 are colored red.
Otherwise, connections between points within a cluster are shown in the cluster’s color.
We color connections in grey that are between points of different clusters.

Last but not least, we add the labels of the cryptocurrencies.

# Visualization
plt.figure(1, facecolor='w', figsize=(20, 8))
plt.clf()
ax = plt.axes([0., 0., 1., 1.])

# Plot the nodes using the coordinates of our embedding
sc = sns.scatterplot(
    data=data,
    x="embedding_x",
    y="embedding_y",
    zorder=1,
    s=350 * d ** 2,
    c=labels,
    cmap=plt.cm.nipy_spectral,
    alpha=.9,
    #palette="muted",
)

# Plot the covariance edges between the nodes (scatter points)
line_strength = 3.2

for index, ((x, y), start, stop) in enumerate(segments):
    norm_partial_correlation = normalized[index]
    if list(data.iloc[[start]]['labels'])[0] == list(data.iloc[[stop]]['labels'])[0]:
        if norm_partial_correlation > 0.5:
            color = 'red'; linestyle='solid'
        else:
            color = plt.cm.nipy_spectral(list(data.iloc[[start]]['labels'])[0] / float(n_labels)); linestyle='solid'
    else:
        if norm_partial_correlation > 0.5:
            color = 'red'; linestyle='solid'
        else:
            color = 'grey'; linestyle='dashed'
    # Plot the edges
    # if x and y larger than 0
    if x[0] > 0 and y[0] > 0:
        plt.plot(x, y, alpha=.4, zorder=0, linewidth=normalized[index]*line_strength, color=color, linestyle=linestyle)


# Labels the nodes and position the labels to avoid overlap with other labels
for name, label, (x, y) in zip(names, labels, embedding.T):
    color = plt.cm.nipy_spectral(label / float(n_labels))
    ax.annotate(
        name,
        xy=(x, y),
        xytext=(5, 2),
        textcoords='offset points',
        ha='right',
        va='bottom',
        fontsize=10,
        color='black',
        bbox=dict(facecolor='w', edgecolor="w", alpha=.0),
     )

Note that you will likely see a different map when you run the code on your machine. Differences result from changes in market prices and covariance that lead to other graph structures.

Let’s see what the crypto market map tells us.

Interpreting the Cryptomarket Map

The 2D crypto market map tells us several things:

Most cryptos fall into the light green and dark green clusters corresponding to different types of crypto (Decentralized Finance Coins, NFT/Metaverse Coins).
There is a significant covariance between large-cap players in the crypto space, such as Cardano and Loopring and Ethereum and Bitcoin, which is plausible considering recent price movements. Some results are surprising, for example, the partial correlation between NEO and Ethereum Classic.
Some clusters are isolated and contain only a single member, for example, Tether, Komodo, AC Milan token, Wave token, and Dogecoin). The reason is that the prices of these coins/tokens have developed independently of the market.
- Tether is a stablecoin that does not change in price. It, therefore, strongly differs from the other cryptocurrencies on our map.
- Komodo has been trading sideways without following the general market trend.
- And the MCM token is a soccer token that has recently outperformed the market.
Soccer tokens are colored in dark blue. These tokens’ prices correlate with how the soccer clubs performed during the current season. It, therefore, makes perfect sense that these tokens are grouped into a cluster. An exception is the AC Milan token, which recently performed better than the other soccer tokens.

Step #6 Creating a 3D Representation

Instead of a 2D representation of the data points, we can also use a 3D node positioning model. For this purpose, the node positioning model distributes the affinity values over three dimensions.

# Find the best position of the cryptos on a 3D plane
node_position_model = manifold.LocallyLinearEmbedding(n_components=3, eigen_solver='dense', n_neighbors=20)
embedding = node_position_model.fit_transform(X.T).T
# The result are x and y coordindates for all cryptocurrencies
pd.DataFrame(embedding)
# Display a graph of the partial correlations
partial_correlations = edge_model.precision_.copy()
d = 1 / np.sqrt(np.diag(partial_correlations))
partial_correlations *= d
partial_correlations *= d[:, np.newaxis]
non_zero = (np.abs(np.triu(partial_correlations, k=1)) > 0.02)
data = pd.DataFrame.from_dict({"embedding_x":embedding[0],"embedding_y":embedding[1],"embedding_z":embedding[1]})
data["labels"] = labels
data["names"] = names
import matplotlib.pyplot as plt
import numpy as np
fig = plt.figure(figsize=(20,20))
ax = fig.add_subplot(projection='3d')
xs = data["embedding_x"]
ys = data["embedding_y"]
zs = data["embedding_z"]
sc = ax.scatter(xs, ys, zs, c=labels, s=100)

for i in range(len(data)):
    x = xs[i]
    y = ys[i]
    z = zs[i]
    label = data["names"][i]
    ax.text(x, y, z, label)

plt.legend(*sc.legend_elements(), bbox_to_anchor=(1.05, 1), loc=2)
plt.show()

Summary

Affinity propagation is a powerful technique for clustering items when the optimal number of clusters is unknown. In this article, we’ve demonstrated how to apply affinity propagation to analyze the cryptocurrency market and identify groups of assets based on similar price fluctuations.

In our example, we identified 13 groups of cryptocurrencies without specifying the number of clusters in advance. We also visualized the market structure on a 2D and 3D map using a node distribution technique. This approach can be extended to analyze and cluster stock markets, highlighting complex price patterns among multiple financial assets.

Once you’ve identified clusters, you can dive deeper into individual groups. Sometimes, outliers that temporarily break out of their usual pattern indicate interesting investment opportunities. These outliers can eventually return to the price pattern of their group, or they may represent forerunners of their group, indicating broader market movements.

By using affinity propagation, we can visualize financial assets in a new and exciting way. If you have any questions or comments about this approach, please let me know.

Sources and Further Reading

This article modifies some of the code from Scikit-learn and adapts it from the stock market to cryptocurrencies.

Jansen (2020) Machine Learning for Algorithmic Trading: Predictive models to extract signals from market and alternative data for systematic trading strategies with Python
Aurélien Géron (2019) Hands-On Machine Learning with Scikit-Learn, Keras, and TensorFlow: Concepts, Tools, and Techniques to Build Intelligent Systems
David Forsyth (2019) Applied Machine Learning Springer
Andriy Burkov (2020) Machine Learning Engineering
Images are created using Midjourney, an AI that creates images from text.

The links above to Amazon are affiliate links. By buying through these links, you support the Relataly.com blog and help to cover the hosting costs. Using the links does not affect the price.

The post Unveiling Hidden Patterns in the Cryptocurrency Market with Affinity Propagation and Python appeared first on relataly.com.

Color-Coded Cryptocurrency Price Charts in Python

Florian Follonier — Tue, 19 Jan 2021 21:03:16 +0000

Are you intrigued by the fascinating world of cryptocurrency and looking to visually decipher its price trends? Welcome aboard! In this comprehensive tutorial, we will explore creating color-coded line charts using Python and Matplotlib, a powerful tool for effective analysis of changes along a third dimension.

The past few years have witnessed a meteoric rise in the prices of cryptocurrencies, underscoring the need for accurate analysis and visualization of their price trends. An outstanding illustration of this is the color-coded Bitcoin stock-to-flow chart, a popular choice in the crypto space that uses color differentiation to denote time until the next Bitcoin halving event.

Drawing inspiration from this, our tutorial will guide you to create a similar dynamic color-coded line chart, tracing the price trends of two leading cryptocurrencies – Bitcoin and Ethereum. This visual aid will provide a deeper insight into their price trajectories over time, enabling you to make informed investment decisions.

As we dive in, we’ll break down the process into digestible chunks, making it easier for beginners to follow along. By the end of this tutorial, you’ll not only have a profound understanding of how to create and interpret such color-coded charts but also gain valuable insights into the world of cryptocurrency price trends.

Disclaimer: This article does not constitute financial advice. Stock markets can be very volatile and are generally difficult to predict. Predictive models and other forms of analytics applied in this article only illustrate machine learning use cases.

What are Color-coded Price Charts?

Color coding is beneficial for visualizing trading signals and statistical indicators in technical chart analysis. The idea of color-coding in chart analysis is to create visually comprehensible charts that let the user quickly interpret how price develops under certain conditions. A simple example is a candlestick chart, which uses color to signal whether the price moves up (green) or down (red). Candlestick charts visualize more as regular line charts, providing additional information on the opening and closing prices.

We can use color codings in line plots to visualize conditions of various types. We can derive them from the price itself and, for example, illustrate the price development independence of oscillation indicators or moving averages. Or they can be independent of the price and represent some other conditions, such as, for example, the spread of COVID-19 cases worldwide. These are just a few examples, and there are no limits to your creativity in choosing the conditions.

Also: Requesting Crypto Price Data from the Gate.io REST API in Python

Use Cases for Color-coded Price Charts

There are various use cases for color-coded line plots in the crypto space. For example, crypto enthusiasts employ them to visualize relationships between the price of bitcoin and statistical indicators, including momentum indicators such as the RSI. Color-coded line plots have also been used to show dependencies between price and specific events that develop parallel to the bitcoin price. For example, we can use color-coding to highlight the lag between the price and the bitcoin halving every four years.

The Stock to Flow Model is an example of a Color-coded price chart (Source: lookintobitcoin.com)

Implementing Color-coded Price Charts in Python

Are you ready to elevate your data visualization skills and create visually striking price charts with Python? In this tutorial, we’ll be walking you through the creation of two dynamic line charts that use color to reveal intriguing trends and patterns. The first chart will feature a color overlay on the price line to showcase how Bitcoin prices fluctuate based on RSI. The second chart will unveil the shifting correlation between Bitcoin and Ethereum over time. Buckle up, and let’s dive in!

We’ll start by using the Coinbase Pro API to download historical price data on BTC and ETH. We’ll then calculate two well-established indicators in financial analysis: the Relative Strength Index (RSI) and the Pearson Correlation between Bitcoin and Ethereum. Finally, we’ll use Matplotlib to create stunning color-coded line charts that highlight the changes in the indicators over extended periods.

Also: Geographic Heat Maps with GeoPandas: Visualizing COVID-19

The code is available on the GitHub repository.

View on GitHub Relataly GitHub Repo

Prerequisites

Before starting the coding part, make sure that you have set up your Python 3 environment and required packages. If you don’t have an environment, you can follow this tutorial to set up the Anaconda environment. Also, make sure you install all required packages. In this tutorial, we will be working with the following standard packages:

In addition, we will be using the Historic-Crypto Python Package, which lets us easily interact with the Coinbase Pro API.

You can install packages using console commands:

pip install
conda install (if you are using the anaconda packet manager)

Step #1 Load the Price Data via the Coinbase API

We begin by downloading the historical price data on Bitcoin (BTC-USD) and Ethereum (BTC-USD) from Coinbase Pro. Don’t worry; you don’t need to download the data manually. Instead, we will use the Historic_Crypto Python package to access the data via an API.

Accessing the data via the Coinbase Pro API requires us to specify several API parameters. We define a frequency of 21600 seconds so that we will obtain price points on a 6-hour basis. In addition, we define a from_date of “2017-01-01” and add “ETH-USD” and “BTC-USD” to a list of coins for which we want to obtain the historical price data.

We query the API separately for each of the two coins in our coin list. Depending on your internet connection, this can take several minutes. The response contains three different price values:

high: the daily price high
low: the daily price low
close: the daily closing price

Later in this article, we will require all three variables to calculate the indicator values. We will therefore add the variables as columns to a new dataframe.

# Tested with Python 3.8.8, Matplotlib 3.5, Seaborn 0.11.1, numpy 1.19.5

from Historic_Crypto import HistoricalData
import pandas as pd
from scipy.stats import pearsonr
import matplotlib.pyplot as plt
import matplotlib.colors as col
import numpy as np
import datetime

# the price frequency in seconds: 21600 = 6 hour price data, 86400 = daily price data
frequency = 21600

# The beginning of the period for which prices will be retrieved
from_date = '2017-01-01-00-00'
# The currency price pairs for which the data will be retrieved
coinlist = ['ETH-USD', 'BTC-USD']

# Query the data
for i in range(len(coinlist)):
    coinname = coinlist[i]
    pricedata = HistoricalData(coinname, frequency, from_date).retrieve_data()
    pricedf = pricedata[['close', 'low', 'high']]
    if i == 0:
        df = pd.DataFrame(pricedf.copy())
    else:
        df = pd.merge(left=df, right=pricedf, how='left', left_index=True, right_index=True)
    df.rename(columns={"close": "close-" + coinname}, inplace=True)
    df.rename(columns={"low": "low-" + coinname}, inplace=True)
    df.rename(columns={"high": "high-" + coinname}, inplace=True)
df.head()

			time	close-ETH-USD	low-ETH-USD	high-ETH-USD	close-BTC-USD	low-BTC-USD	high-BTC-USD
2017-01-01 06:00:00	8.23			8.16		8.49			975.00			964.54		975.00
2017-01-01 12:00:00	8.33			8.20		8.44			994.42			974.01		994.97
2017-01-01 18:00:00	8.18			8.08		8.37			992.95			986.86		1000.00
2017-01-02 00:00:00	8.13			8.05		8.22			1003.64			990.52		1012.00
2017-01-02 06:00:00	8.10			8.09		8.20			1024.84			1002.92		102

Step #2 Visualizing the Time Series

At this point, we have created a dataframe that contains the price “close,” “low,” and “high” for BTC-USD and ETH-USD. Next, let’s take a quick look at what the data looks like:

# Create a Price Chart on BTC and ETH
x = df.index
fig, ax1 = plt.subplots(figsize=(16, 8), sharex=False)

# Price Chart for BTC-USD Close
color = 'tab:blue'
y = df['close-BTC-USD']
ax1.set_xlabel('time (s)')
ax1.set_ylabel('BTC-Close in $', color=color, fontsize=18)
ax1.plot(x, y, color=color)
ax1.tick_params(axis='y', labelcolor=color)
ax1.text(0.02, 0.95, 'BTC-USD',  transform=ax1.transAxes, color=color, fontsize=16)

# Price Chart for ETH-USD Close
color = 'tab:red'
y = df['close-ETH-USD']
ax2 = ax1.twinx()  # instantiate a second axes that shares the same x-axis
ax2.set_ylabel('ETH-Close in $', color=color, fontsize=18)  # we already handled the x-label with ax1
ax2.plot(x, y, color=color)
ax2.tick_params(axis='y', labelcolor=color)
ax2.text(0.02, 0.9, 'ETH-USD',  transform=ax2.transAxes, color=color, fontsize=16)

Next, we add two indicator values to our dataframe that we can later use to color the price chart.

Step #3 Calculate Indicator Values

The color overlay of the price chart is typically used to illustrate the relation between price and another variable, such as a statistical indicator. To demonstrate how this works, we will calculate two indicators and add them to our dataframe:

3.1 The Relative Strength Index

The Relative Strength Index (RSI) is a momentum indicator that signals the strength of a price trend. Its value range from 0 to 100%. A value above 70% signals that an asset is likely overbought. An overbought level is an area where the market is highly bullish and might decline. A value below 30% is typically a sign of an oversold condition. An oversold level is where the market is extremely bearish, and the price tends to reverse to the upper side.

3.2 The Pearson Correlation Coefficient

Pearson Correlation Coefficient: This indicator measures the correlation between two sets of stochastic variables. Its values range from -1 to 1. A value of 1 would imply a perfect stochastic correlation. For example, if the price of BTC changes by X percentage in a given period, we can expect ETH to experience the exact price change. A value of -1 would imply a perfect inverse correlation. For example, if the price of BTC were to increase by Y percent, we would also expect the ETH price to decrease by Y percent. A value of 0 implies no correlation. To learn more about correlation, check out my article about correlation in Python.

We embed the logic for calculating the two indicators in a different method called “add_indicators.”

def add_indicators(df):
    # Calculate the 30 day Pearson Correlation
    cor_period = 30 #this corresponds to a monthly correlation period
    columntobeadded = [0] * cor_period
    df = df.fillna(0)
    for i in range(len(df)-cor_period):
        btc = df['close-BTC-USD'][i:i+cor_period]
        eth = df['close-ETH-USD'][i:i+cor_period]
        corr, _ = pearsonr(btc, eth)
        columntobeadded.append(corr)
    # insert the colours into our original dataframe
    df.insert(2, "P_Correlation", columntobeadded, True)

    # Calculate the RSI
    # Moving Averages on high, lows, and std - different periods
    df['MA200_low'] = df['low-BTC-USD'].rolling(window=200).min()
    df['MA14_low'] = df['low-BTC-USD'].rolling(window=14).min()
    df['MA200_high'] = df['high-BTC-USD'].rolling(window=200).max()
    df['MA14_high'] = df['high-BTC-USD'].rolling(window=14).max()

    # Relative Strength Index (RSI)
    df['K-ratio'] = 100*((df['close-BTC-USD'] - df['MA14_low']) / (df['MA14_high'] - df['MA14_low']) )
    df['RSI'] = df['K-ratio'].rolling(window=3).mean()

    # Replace nas
    #nareplace = df.at[df.index.max(), 'close-BTC-USD']
    df.fillna(0, inplace=True)
    return df

dfcr = add_indicators(df)

At this point, we have added the RSI and the Correlation Coefficient to our dataframe. Let’s quickly visualize the two indicators in a line chart.

# Visualize measures
fig, ax1 = plt.subplots(figsize=(22, 4), sharex=False)
plt.ylabel('ETH-BTC Price Correlation', color=color)  # we already handled the x-label with ax1
x = y = dfcr.index
ax1.plot(x, dfcr['P_Correlation'], color='black')
ax2 = ax1.twinx()
ax2.plot(x, dfcr['RSI'], color='blue')
plt.tick_params(axis='y', labelcolor=color)

plt.show()

You may have noticed that the indicators remain at 0 at the time series beginning. However, this is perfectly fine. Since both indicators are calculated retrospectively, no values are available initially.

Step #4 Converting Indicator Values to Color Codes

Before creating the price charts, we have to color code the indicator values. We normalize the values and then assign a color to each indicator value using a color scale. We attach the colors to our existing dataframe to quickly access them when creating the plots.

# function that converts a given set of indicator values to colors
def get_colors(ind, colormap):
    colorlist = []
    norm = col.Normalize(vmin=ind.min(), vmax=ind.max())
    for i in ind:
        colorlist.append(list(colormap(norm(i))))
    return colorlist

# convert the RSI
y = np.array(dfcr['RSI'])
colormap = plt.get_cmap('plasma')
dfcr['rsi_colors'] = get_colors(y, colormap)

# convert the Pearson Correlation
y = np.array(dfcr['P_Correlation'])
colormap = plt.get_cmap('plasma')
dfcr['cor_colors'] = get_colors(y, colormap)

In our dataframe, two additional columns contain the color values for the two indicators. Now that we have all the data in our dataframe, the next step is creating the price charts.

Step #5 Creating Color-Coded Price Charts

Next, we use the color values to create two different color-coded price charts.

5.1 Bitcoin Price Chart Colored by RSI

We color the chart with the strength of the correlation between Bitcoin and Ethereum. Light-colored fields signal phases of a strong correlation. Price points colored in dark blue indicate phases where the correlation between the price movements of the two cryptocurrencies was negative.

# Create a Price Chart
pd.plotting.register_matplotlib_converters()
fig, ax1 = plt.subplots(figsize=(18, 10), sharex=False)
x = dfcr.index
y = dfcr['close-BTC-USD']
z = dfcr['rsi_colors']

# draw points
for i in range(len(dfcr)):
    ax1.plot(x[i], np.array(y[i]), 'o',  color=z[i], alpha = 0.5, markersize=5)
ax1.set_ylabel('BTC-Close in $')
ax1.tick_params(axis='y', labelcolor='black')
ax1.set_xlabel('Date')
ax1.text(0.02, 0.95, 'BTC-USD - Colored by RSI',  transform=ax1.transAxes, fontsize=16)

# plot the color bar
pos_neg_clipped = ax2.imshow(list(z), cmap='plasma', vmin=0, vmax=100, interpolation='none')
cb = plt.colorbar(pos_neg_clipped)

From the color overlay in the chart, we can tell that the RSI is low mainly (dark blue) when the Bitcoin price has seen a substantial decline and high (yellow) when the price has risen.

5.2 Bitcoin Price Chart colored by BTC-ETH Correlation

In this section, we will create another price chart for Bitcoin. This time we color code the price trend with the RSI. High RSI values are yellow, and low values are dark blue. Running the code below will create the color-coded bitcoin chart.

# create a price chart
pd.plotting.register_matplotlib_converters()
fig, ax1 = plt.subplots(figsize=(18, 10), sharex=False)
x = dfcr.index # datetime index
y = dfcr['close-BTC-USD'] # the price variable
z = dfcr['cor_colors'] # the color coded indicator values

# draw points
for i in range(len(dfcr)):
    ax1.plot(x[i], np.array(y[i]), 'o',  color=z[i], alpha = 0.5, markersize=5)
ax1.set_ylabel('BTC-Close in $')
ax1.tick_params(axis='y', labelcolor='black')
ax1.set_xlabel('Date')
ax1.text(0.02, 0.95, 'BTC-USD - Colored by 50-day ETH-BTC Correlation',  transform=ax1.transAxes, fontsize=16)

# plot the color bar
pos_neg_clipped = ax2.imshow(list(z), cmap='Spectral', vmin=-1, vmax=1, interpolation='none')
cb = plt.colorbar(pos_neg_clipped)

The chart shows that the correlation between Bitcoin and Ethereum (yellow color) was strong when the price of bitcoin rose. So when Bitcoin is in a bull market, Ethereum tends to follow a similar price logic. In contrast, the correlation was weak when the Bitcoin price declined (dark blue).

Summary

In this article, we demonstrated how to use Python and Seaborn to create a price chart that incorporates color as a third dimension. We used the Bitcoin price as an example and created two color-coded charts: one that highlights the RSI, and another that highlights the Pearson Correlation between Bitcoin and Ethereum.

By using color as an overlay, it is possible to highlight many interesting relationships in time-series data. A well-known example from the cryptocurrency world is the Bitcoin Rainbow Chart. This technique can be used to bring attention to various trends and patterns in the data.

I hope this article has helped to bring you closer to charts in Python. I am always interested to receive feedback from my audience. So, let me know if you liked this content, and if you have any questions, please post them in the comments.

Sources and Further Reading

The links above to Amazon are affiliate links. By buying through these links, you support the Relataly.com blog and help to cover the hosting costs. Using the links does not affect the price.

And if you are interested in stock-market prediction, check out the following articles:

The post Color-Coded Cryptocurrency Price Charts in Python appeared first on relataly.com.
