The post Feature Engineering and Selection for Regression Models with Python and Scikit-learn appeared first on relataly.com.

]]>

Training a machine learning model is like baking a cake: the quality of the end result depends on the ingredients you put in. If your input data is poor, your predictions will be too. But with the right ingredients – in this case, carefully selected input features – you can create a model that’s both accurate and powerful. This is where feature engineering comes in. It’s the process of exploring, creating, and selecting the most relevant and useful features to use in your model. And just like a chef experimenting with different spices and flavors, the process of feature engineering is iterative and tailored to the problem at hand. In this guide, we’ll walk you through a step-by-step process using Python and Scikit-learn to create a strong set of features for a regression problem. By the end, you’ll have the skills to tackle any feature engineering challenge that comes your way.

The remainder of this article proceeds as follows: We begin with a brief intro to feature engineering and describe valuable techniques. We then turn to the hands-on part, in which we develop a regression model for car sales. We apply various techniques that show how to handle outliers and missing values, perform correlation analysis, and discover and manipulate features. You will also find information about common challenges and helpful sklearn functions. Finally, we will compare our regression model to a baseline model that uses the original dataset.

Also: Sentiment Analysis with Naive Bayes and Logistic Regression in Python

What is Feature Engineering?

Feature engineering is the process of using domain knowledge of the data to create features (variables) that make machine learning algorithms work. This is an important step in the machine learning pipeline because the choice of good features can greatly affect the performance of the model. The goal is to identify features, tweak them, and select the most promising ones into a smaller feature subset. We can break this process down into several action items.

Data Scientists can easily spend 70% to 80% of their time on feature engineering. The time is well spent, as changes to input data have a direct impact on performance. This process is often iterative and requires repeatedly revisiting the various tasks as understanding the data and the problem evolves. Knowing techniques and associated challenges helps in adequate feature engineering.

Also: Mastering Prompt Engineering for ChatGPT for Business Use

Engineering features python tutorial machine learning. Image of an engineer working on a technical document. Midjourney. relataly.com
Feature engineering is about carefully choosing features instead of taking all the features at once. Image created with Midjourney.

Core Tasks

The goal of feature engineering is to create a set of features that are representative of the underlying data and that can be used by the machine learning algorithm to make accurate predictions. Several tasks are commonly performed as part of the feature engineering process, including:

  • Data discovery: To solve real-world problems with analytics, it is crucial to understand the data. Once you have gathered your data, describing and visualizing the data are means to familiarize yourself with it and develop a general feel for the data.
  • Data structuring: The data needs to be structured into a unified and usable format. Variables may have a wrong datatype, or the data is distributed across different data frames and must first be merged. In these cases, we first need to bring the data together and into the right shape.
  • Data cleansing: Besides being structured, data needs to be cleaned. Records may be redundant or contaminated with errors and missing values that can hinder our model from learning effectively. The same goes for outliers that can distort statistics.
  • Data transformation: We can increase the predictive power of our input features by transforming them. Activities may include applying mathematical functions, removing specific data, or grouping variables into bins. Or we create entirely new features out of several existing ones.
  • Feature selection: Only some may contain valuable information from the many available variables. By sorting variables that are less relevant and selecting the most promising features, we can create models that are less complex and yield better results.

Exploratory Feature Engineering Toolset

Exploratory analysis for identifying and assessing relevant features knows several tools:

  • Data Cleansing
  • Descriptive statistics
  • Univariate Analysis
  • Bi-variate Analysis
  • Multivariate Analysis

Data Cleansing

Educational data is often remarkably perfect, without any errors or missing values. However, it is important to recognize that most real-world data has data quality issues. Some reasons for data quality issues are

  • Standardization issues because the data was recorded from different peoples, sensor types, etc.
  • Sensor or system outages can lead to gaps in the data or create erroneous data points.
  • Human errors

An important part of feature engineering is to inspect the data and ensure its quality before use. This is what we understand as “data cleansing.” It includes several tasks that aim to improve the data quality, remove erroneous data points and bring the data into a more useful form.

  • Cleaning errors, missing values, and other issues.
  • Handling possible imbalanced data
  • Removing obvious outliers
  • Standardisation, e.g., dates or adresses

Accomplishing these tasks requires a good understanding of the data. We, therefore, carry out data cleansing activities closely intertwined with other exploratory tasks, e.g., univariate and bivariate data analysis. Also, remember that visualizations can aid in the process, as they can greatly enhance your ability to analyze and understand the data.

Descriptive Statistics

One of the first steps in familiarizing oneself with a new dataset is to use descriptive statistics. Descriptive statistics help understand the data and how the sample represents the real-world population. We can use several statistical measures to analyze and describe a dataset, including the following:

  • Measures of Central Tendency represent a typical value of the data.
    • The mean: The average-based adds together all values in the sample and divides them by the number of samples.
    • The median: The median is the value that lies in the middle of the range of all sample values
    • The mode: is the most occurring value in a sample set (for categorical variables)
  • Measures of Variability tell us something about the spread of the data.
    • Range: The difference between the minimum and maximum value
    • Variance: This is the average of the squared difference of the mean.
    • Standard Deviation: The square root of the variance.
  • and Measures of Frequency inform us how often we can expect a value to be present in the data, e.g., value counts

Univariate Analysis

As “uni” suggests, the univariate analysis focuses on a single variable. Rather than examining the relationships between the variables, univariate analysis employs descriptive statistics and visualizations to understand individual columns better.

Which illustrations and measures we use depends on the type of the variable.

Categorical variables (incl. binary)

  • Descriptive measures include counts in percent and absolute values
  • Visualizations include pie charts, bar charts (count plots)

Continuous variables

  • Descriptive measures include min, max, median, mean, variance, standard deviation, and quantiles.
  • Visualizations include box plots, line plots, and histograms.
Normal distribution, univariate analysis

Bi-variate Analysis

Bi-variate (two-variate) analysis is a kind of statistical analysis that focuses on the relationship between two variables, for example, between a feature column and the target variable. In the case of machine learning projects, bivariate analysis can help to identify features that are potentially predictive of the label or the regression target.

Model performance will benefit from strong linear dependencies. In addition, we are also interested in examining the relationships among the features used to train the model. Different types of relations exist that can be examined using various plots and statistical measures:

Numerical/Numerical

Both variables have numerical values. We can illustrate their relation using lineplots or dot plots. We can examine such relations with correlation analysis.

The ideal feature subset contains features that are not correlated with each other but are heavily correlated with the target variable. We can use dimensionality reduction to reduce a dataset with many features to a lower-dimensional space in which the remaining features are less correlated.

Traditional correlation analysis (e.g., Pearson) cannot consider non-linear relations. We can identify such a relation manually by visualizing the data, for example, using line plots. Once we denote a non-linear relation, we could try to apply mathematical transformations to one of the variables to make their relation more linear.

For pairwise analysis, we must understand which variables we deal with. We can differentiate between three categories:

  • Numerical/Categorical
  • Numerical/Numerical
  • Categorical/Categorical
Heatmaps illustrate the relation between features and a target variable.
Heatmaps illustrate the relation between features and a target variable.

Numerical/Categorical

Plots that visualize the relationship between a categorical and a numerical variable include barplots and lineplots.

Especially helpful are histograms (count plots). They can highlight differences in the distribution of the numerical variable for different categories.

A specific subcase is a numerical/date relation. Such relations are typically visualized using line plots. In addition, we want to look out for linear or non-linear dependencies.

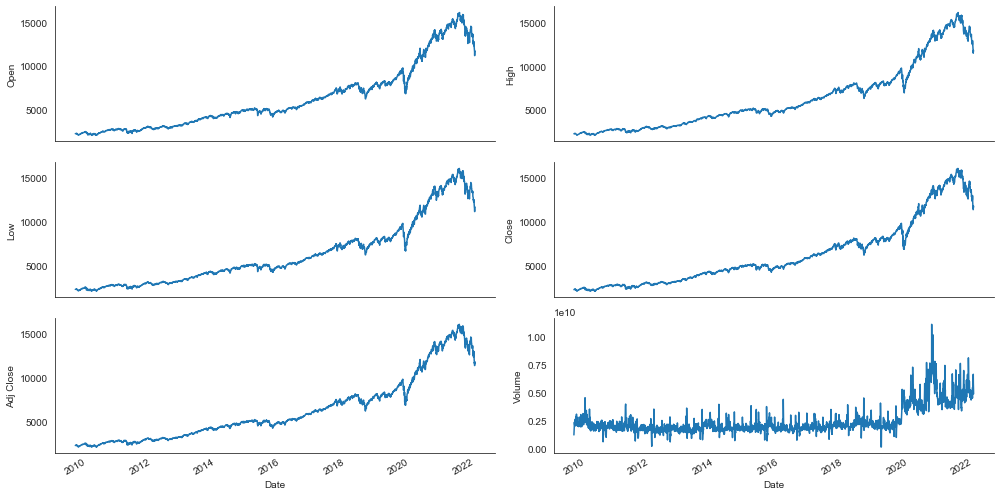

the lineplot is useful for feature exploration and engineering
Line charts are useful when examining trends.

Categorical/Categorical

The relation between two categorical variables can be studied, including density plots, histograms, and bar plots.

For example, with car types (attributes: sedan and coupe) and colors (characteristics: red, blue, yellow), we can use a barplot to see if sedans are more often red than coupes. Differences in the distribution of characteristics can be a starting point for attempts to manipulate the features and improve model performance.

the barplot is useful for feature exploration and engineering
Bar and column charts are a great way to compare numeric values for discrete categories visually.

Multivariate Analysis

Multivariate analysis encompasses the simultaneous analysis of more than two variables. The approach can uncover multi-dimensional dependencies and is often used in advanced feature engineering. For example, you may find that two variables are weakly correlated with the target variable, but when combined, their relation intensifies. So you might try to create a new feature that uses the two variables as input. Plots that can visualize relations between several variables include dot plots and violin plots.

In addition, multivariate analysis refers to techniques to reduce the dimensionality of a dataset. For example, principal component analysis (PCA) or factor analysis can condense the information in a data set into a smaller number of synthetic features.

Now that we have a good understanding of what feature selection techniques are available, we can start the practical part and apply them.

the scatterplot is useful for feature exploration and engineering
Scatter charts are useful when you want to compare two numeric quantities and see a relationship or correlation between them.
the violin plot is useful for feature exploration and engineering

Also: Color-Coded Cryptocurrency Price Charts in Python

Feature Engineering for Car Price Regression with Python and Scikit-learn

The value of a car on the market depends on various factors. The distance traveled with the vehicle and the year of manufacture is obvious dependencies. But beyond that, we can use many other factors to train a machine learning model that predicts the selling price of the used car market. The following hands-on Python tutorial will create such a model. We will work with a dataset containing used cars’ characteristics in the following. For marketing, it is crucial to understand what car characteristics determine the price of a vehicle. Our goal is to model the car price from the available independent variables. We aim to build a model that performs well on a small but powerful input subset.

Exploring and creating features varies between different application domains. For example, feature engineering in computer vision will differ greatly from feature engineering for regression or classification models or NLP models. So the example provided in this article is just for regression models.

We follow an exploratory process that includes the following steps:

  1. Loading the data
  2. Cleaning the data
  3. Univariate analysis
  4. Bivariate analysis
  5. Selecting features
  6. Data preparation
  7. Model training
  8. Measuring performance

Finally, we compare the performance of our model, which was trained on a minimal set of features, to a model that uses the original data.

Yes, you can judge by the length of the beard that this guy is a legendary feature engineer. Image created with Midjourney.
Yes, you can judge by the length of the beard that this guy is a legendary feature engineer. Image created with Midjourney.

The Python code is available in the relataly GitHub repository.

View on GitHub Relataly Github Repo

Prerequisites

Before you proceed, ensure that you have set up your Python environment (3.8 or higher) and the required packages. If you don’t have an environment, follow this tutorial to set up the Anaconda environment.

Also, make sure you install all required packages. In this tutorial, we will be working with the following standard packages:

You can install packages using console commands:

  • pip install <package name>
  • conda install <package name> (if you are using the anaconda packet manager)

About the Dataset

In this tutorial, we will be working with a dataset containing listings for 111763 used cars. The data includes 13 variables, including the dependent target variable

  • prod_date: The year of production
  • maker: The manufacturer’s name
  • model: The car edition
  • trim: Different versions of the model
  • body_type: The body style of a vehicle
  • transmission_type: The way the power is brought to the wheels
  • state: The state in which the car is auctioned
  • condition: The condition of the cars
  • odometer: The distance the car has traveled since manufactured
  • exterior_color: Exterior color
  • interior_color: Interior color
  • sale_price (target variable): The price a car was sold
  • sale_date: The date on which the car has been sold

The dataset is available for download from Kaggle.com, but you can execute the code below and load the data from the relataly GitHub repository.

Car price prediction machine learning python tutorial. Image of different cars cartoon style. Midjourney. relataly.com
Car price prediction is a solid use case for machine learning. Image created with Midjourney.

Step #1 Load the Data

We begin by importing the necessary libraries and downloading the dataset from the relataly GitHub repository. Next, we will read the dataset into a pandas DataFrame. In addition, we store the name of our regression target variable to ‘price_usd,’ which is one of the columns in the initial dataset. The “.head ()” function displays the first records of our DataFrame.

# Tested with Python 3.8.8, Matplotlib 3.5, Scikit-learn 0.24.1, Seaborn 0.11.1, numpy 1.19.5
from codecs import ignore_errors
import math
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
sns.set_style('white', {'axes.spines.right': False, 'axes.spines.top': False})
from pandas.api.types import is_string_dtype, is_numeric_dtype
from sklearn.tree import DecisionTreeRegressor
from sklearn.ensemble import RandomForestRegressor
from sklearn.preprocessing import LabelEncoder
from sklearn.metrics import mean_absolute_error, mean_absolute_percentage_error
from sklearn.model_selection import cross_val_score, train_test_split
from sklearn.inspection import permutation_importance
from sklearn.model_selection import ShuffleSplit
# Original Data Source:
# https://www.kaggle.com/datasets/tunguz/used-car-auction-prices
# Load train and test datasets
df = pd.read_csv("https://raw.githubusercontent.com/flo7up/relataly_data/main/car_prices2/car_prices.csv")
df.head(3)
	prod_year	maker			model		trim		body_type		transmission_type	state	condition	odometer	exterior_color	interior	sellingprice	date
0	2015		Kia				Sorento		LX			SUV				automatic			ca		5.0			16639.0		white			black		21500	2014-12-16
1	2015		Nissan			Altima		2.5 S		Sedan			automatic			ca		1.0			5554.0		gray			black		10900	2014-12-30
2	2014		Audi			A6	3.0T 	Prestige 	quattro	Sedan	automatic			ca		4.8			14414.0		black			black		49750	2014-12-16

We now have a dataframe that contains 12 columns and the dependent target variable we want to predict.

Step #2 Data Cleansing

Now that we have loaded the data, we begin with the exploratory analysis. First, we will put it into shape.

2.1 Check Names and Datatypes

If the names in a dataset are not self-explaining, it is easy to get confused with all the data. Therefore, will rename some of the columns and provide clearer names. There is no default naming convention, but striving for consistency, simplicity, and understandability is generally a good idea.

The following code line renames some of the columns.

# rename some columns for consistency
df.rename(columns={'exterior_color': 'ext_color',
                   'interior': 'int_color',
                   'sellingprice': 'sale_price'}, inplace=True)
df.head(1)
	prod_year	maker	model	trim	body_type	transmission_type	state	condition	odometer	ext_color	int_color	sale_price	date
0	2015		Kia		Sorento	LX		SUV			automatic			ca		5.0			16639.0		white		black		21500		2014-12-16

Next, we will check and remove possible duplicates.

# check and remove dublicates
print(len(df))
df = df.drop_duplicates()
print(len(df))
OUT: 111763, 111763

There were no duplicates in the data, which is good.

# check datatypes
df.dtypes
prod_year              int64
maker                 object
model                 object
trim                  object
body_type             object
transmission_type     object
state                 object
condition            float64
odometer             float64
ext_color             object
int_color             object
sale_price             int64
date                  object
dtype: object

We compare the datatypes to the first records we printed in the previous section. Be aware that categorical variables (e.g., of type “string”) are shown as “objects.” The data types look as expected.

Finally, we define our target variable’s name, “sale_price.” The target variable will be our regression target, and we will use its name often.

# consistently define the target variable
target_name = 'sale_price'

2.2 Checking Missing Values

Some machine learning algorithms are sensitive to missing values. Handling missing values is, therefore a crucial step in exploratory feature engineering.

Let’s first gain an overview of null values. With a larger DataFrame, it would be inefficient to review all the rows and columns individually for missing values. Instead, we use the sum function and visualize the results to get a quick overview of missing data in the DataFrame.

# check for missing values
null_df = pd.DataFrame(df.isna().sum(), columns=['null_values']).sort_values(['null_values'], ascending=False)
fig = plt.subplots(figsize=(16, 6))
ax = sns.barplot(data=null_df, x='null_values', y=null_df.index, color='royalblue')
pct_values = [' {:g}'.format(elm) + ' ({:.1%})'.format(elm/len(df)) for elm in list(null_df['null_values'])]
ax.bar_label(container=ax.containers[0], labels=pct_values, size=12)
ax.set_title('Overview of missing values')
overview of missing values in the car price regression dataset

The bar chart shows that there are several variables with missing values. Variables with many missing values can negatively affect model performance, which is why we should try to treat them.

2.3 Overview of Techniques for Handling Missing Values

There are various ways to handle missing data. The most common options to handle missing values are:

  • Custom substitution value: Sometimes, the information that a value is missing can be important information to a predictive model. We can substitute missing values with a placeholder value such as “missing” or “unknown.” The approach works particularly well for variables with many missing values.
  • Statistical filling: We can fill in a statistically chosen measure, such as the mean or median for numeric variables, or the mode for categorical variables.
  • Replace using Probabilistic PCA: PCA uses a linear approximation function that tries to reconstruct the missing values from the data.
  • Remove entire rows: It is crucial to ensure that we only use data we know is correct. In those cases, we can drop an entire row if it contains a missing value. This also solves the problem but comes at the cost of losing potentially important information – especially if the data quantity is small.
  • Remove the entire column: It is another alternative way of resolving missing values. This is typically the least option, as we lose an entire feature.

How we handle missing values can dramatically affect our prediction results. To find the ideal method, it is often necessary to experiment with different techniques. Sometimes, the information that a value is missing can also be important. This occurs when the missing values are not randomly distributed in the data and show a pattern. In such a case, you should create an additional feature that states whether values are missing.

2.4 Handle Missing Values

In this example, we will use the median value to fill in the missing values of our numeric variables and the mode to replace the missing values of categorical variables. When we check again, we can see that odometer and condition have no more missing values.

# fill missing values with the mean for numeric columns
for col_name in df.columns:
    if (is_numeric_dtype(df[col_name])) and (df[col_name].isna().sum() > 0):
        df[col_name].fillna(df[col_name].median(), inplace=True) # alternatively you could also drop the columns with missing values using .drop(columns=['engine_capacity'])
print(df.isna().sum())
prod_year                0
maker                 2078
model                 2096
trim                  2157
body_type             2641
transmission_type    13135
state                    0
condition                0
odometer                 0
ext_color              173
int_color              173
sale_price               0
date                     0
dtype: int64

Next, we handle the missing values of transmission_type by filling them with the mode.

# check the distribution of missing values for transmission type
print(df['transmission_type'].value_counts())
# fill values with the mode
df['transmission_type'].fillna(df['transmission_type'].mode()[0], inplace=True)
print(df['transmission_type'].isna().sum())
automatic    108198
manual         3565
Name: transmission_type, dtype: int64
0

We handle body_type analogs as transmission_type and fill the missing values with the mode. The mode is the value that appears most often in the data. The mode of transmission_type is “Sedan.” However, this value is not that prevalent, as half of the cars have other body types, e.g., “SUV.” Therefore, we will replace the missing values with “Unknown.”

# check the distribution of missing values for body type
print(df['body_type'].value_counts())
# fill values with 'Unknown'
df['body_type'].fillna("Unknown", inplace=True)
print(df['body_type'].isna().sum())
Sedan                 39955
SUV                   23836
sedan                  8377
suv                    4934
Hatchback              4241
                      ...
cts-v coupe               2
Ram Van                   1
Transit Van               1
CTS Wagon                 1
beetle convertible        1
Name: body_type, Length: 74, dtype: int64
0

Now we have handled most of the missing values in our data. However, some variables are still left, with a few missing values. We will make things easy and simply drop all remaining records with missing values. Considering that we have more than 100k records and only a few variables, we can afford to do this without fear of a severe impact on our model performance.

# remove all other records with missing values
df.dropna(inplace=True)
print(df.isna().sum())
prod_year            0
maker                0
model                0
trim                 0
body_type            0
transmission_type    0
state                0
condition            0
odometer             0
ext_color            0
int_color            0
sale_price           0
date                 0
dtype: int64

Finally, we check again for missing values and see that everything has been filled. Now, we have a cleansed dataset with 13 columns.

2.3 Save a Copy of the Cleaned Data

Before exploring the features, let’s make a copy of the cleaned data. We will later use this “full” dataset to compare the performance of our model with a baseline model.

# Create a copy of the dataset with all features for comparison reasons
df_all = df.copy()

Step #3 Getting started with Statistical Univariate Analysis

Now it’s time to analyze the data and explore potential useful features for our subset. Although the process follows a linear flow in this example, you may notice in practice that you must go back and forth between different steps of the feature exploration and engineering process.

First, we will look at the variance of the features in the initial dataset. Machine learning models can only learn from variables that have adequate variance. So, low-variance features are often candidates to exclude from the feature subset.

We use the .describe() method to display univariate descriptive statistics about the numerical columns in our dataset.

# show statistics for numeric variables
print(df.columns)
df.describe()

Next, we check the categorical variables. All variables seem to have a good variance. We can measure the variance with statistical measures or observe it manually using bar charts and scatterplots.

We can use histplots to visualize the distributions of the numeric variables. The example below shows the histplot for our target variable sale_price.

# Explore the variance of the target variable
variable_name = 'sale_price'
fig, ax = plt.subplots(figsize=(14,5))
sns.histplot(data=df[[variable_name]].dropna(), ax=ax, color='royalblue', kde=True)
ax.get_legend().remove()
ax.set_title(variable_name + ' Distribution')
ax.set_xlim(0, df[variable_name].quantile(0.99))
distribution of the target variable in sale price regression; example for feature exploration and preparation with python and sklearn

The histplot shows that sale prices are skewed to the left. This means there are many cheap cars and fewer expensive ones, which makes sense.

Next, we create bar plots for categorical values.

# 3.2 Illustrate the Variance of Numeric Variables
f_list_numeric = [x for x in df.columns if (is_numeric_dtype(df[x]) and df[x].nunique() > 2)]
f_list_numeric
# box plot design
PROPS = {
    'boxprops':{'facecolor':'none', 'edgecolor':'royalblue'},
    'medianprops':{'color':'coral'},
    'whiskerprops':{'color':'royalblue'},
    'capprops':{'color':'royalblue'}
    }
sns.set_style('ticks', {'axes.edgecolor': 'grey',
                        'xtick.color': '0',
                        'ytick.color': '0'})
# Adjust plotsize based on the number of features
ncols = 1
nrows = math.ceil(len(f_list_numeric) / ncols)
fig, axs = plt.subplots(nrows, ncols, figsize=(14, nrows*1))
for i, ax in enumerate(fig.axes):
    if i < len(f_list_numeric):
        column_name = f_list_numeric[i]
        sns.boxplot(data=df[column_name], orient="h", ax = ax, color='royalblue', flierprops={"marker": "o"}, **PROPS)
        ax.set(yticklabels=[column_name])
        fig.tight_layout()

We can observe two things: First, the variance of transmission type is low, as most cars have an automatic transmission. So transmission_type is the first variable that we exclude from our feature subset.

# Drop features with low variety
df = df.drop(columns=['transmission_type'])
df.head(2)
	prod_year	maker	model	trim	body_type	state	condition	odometer	ext_color	int_color	sale_price	date
0	2015		Kia		Sorento	LX		SUV			ca		5.0			16639.0		white		black		21500		2014-12-16
1	2015		Nissan	Altima	2.5 S	Sedan		ca		1.0			5554.0		gray		black		10900		2014-12-30

Second, int_color and ext_color have many categorical values. By grouping some of these values that hardly ever occur, we can help the model to focus on the most relevant patterns. However, before we do that, we need to take a closer look at how the target variable differs between the categories.

Step #4 Bi-variate Analysis

Now that we have a general understanding of our dataset’s individual variables, let’s look at pairwise dependencies. We are particularly interested in the relationship between features and the target variables. Our goal is to keep features whose dependence on the target variable shows some pattern – linear or non-linear. On the other hand, we want to exclude features whose relationship with the target variable looks arbitrary.

Visualizations have to take the datatypes of our variables into account. To illustrate the relation between categorical features and the target, we create boxplots and kdeplots. For numeric (continuous) features, we use scatterplots.

4.1 Analyzing the Relation between Features and the Target Variable

We begin by taking a closer look at the int_color and ext_color. We use kdeplots to highlight the distribution of prices depending on different colors.

def make_kdeplot(column_name):
    fig, ax = plt.subplots(figsize=(20,8))
    sns.kdeplot(data=df, hue=column_name, x=target_name, ax = ax, linewidth=2,)
    ax.tick_params(axis="x", rotation=90, labelsize=10, length=0)
    ax.set_title(column_name)
    ax.set_xlim(0, df[target_name].quantile(0.99))
    plt.show()

make_kdeplot('ext_color')
Density plots are useful during feature exloration and selection
make_kdeplot('int_color')
Another density plot that shows the distribution of colors across our car dataset

In both cases, a few colors are prevalent and account for most observations. Moreover, distributions of the car price differ for these prevalent colors. These differences look promising as they may help our model to differentiate cheaper cars from more expensive ones. To simplify things, we group the colors that hardly occur into a color category called “other.”

# Binning features
df['int_color'] = [x if  x in(['black', 'gray', 'white', 'silver', 'blue', 'red']) else 'other' for x in df['int_color']]
df['ext_color'] = [x if  x in(['black', 'gray', 'white', 'silver', 'blue', 'red']) else 'other' for x in df['ext_color']]

Next, we create plots for all remaining features.

# Vizualising Distributions
f_list = [x for x in df.columns if ((is_numeric_dtype(df[x])) and x != target_name) or (df[x].nunique() < 50)]
f_list_len = len(f_list)
print(f'numeric features: {f_list_len}')
# Adjust plotsize based on the number of features
ncols = 1
nrows = math.ceil(f_list_len / ncols)
fig, axs = plt.subplots(nrows, ncols, figsize=(18, nrows*5))
for i, ax in enumerate(fig.axes):
    if i < f_list_len:
        column_name = f_list[i]
        print(column_name)
        # If a variable has more than 8 unique values draw a scatterplot, else draw a violinplot
        if df[column_name].nunique() > 100 and is_numeric_dtype(df[column_name]):
            # Draw a scatterplot for each variable and target_name
            sns.scatterplot(data=df, y=target_name, x=column_name, ax = ax)
        else:
            # Draw a vertical violinplot (or boxplot) grouped by a categorical variable:
            myorder = df.groupby(by=[column_name])[target_name].median().sort_values().index
            sns.boxplot(data=df, x=column_name, y=target_name, ax = ax, order=myorder)
            #sns.violinplot(data=df, x=column_name, y=target_name, ax = ax, order=myorder)
        ax.tick_params(axis="x", rotation=90, labelsize=10, length=0)
        ax.set_title(column_name)
    fig.tight_layout()
boxplots and scatterplots help us to understand the relationship between our features and the target variable

Again, for categorical variables, we want to see differences in the distribution of the categories. Based on the boxplot’s median and the quantiles, we can denote that prod_year, int_color, and condition show adequate variance. The scatterplot for the odometer value also looks good. So we want to keep these features. In contrast, the differences between “state” and “ext_color” are rather weak. Therefore, we exclude these variables from our subset.

# drop columns with low variance
df.drop(columns=['state', 'ext_color'], inplace=True)

Finally, if you want to take a more detailed look at the numeric features, you can use jointplots. These are scatterplots with additional information about the distributions. The example below shows the jointplot for the odometer value vs price.

# detailed univariate and bivariate analysis of 'odometer' using a jointplot
def make_jointplot(feature_name):
    p = sns.jointplot(data=df, y=feature_name, x=target_name, height=6, ratio=6, kind='reg', joint_kws={'line_kws':{'color':'coral'}})
    p.fig.suptitle(feature_name + ' Distribution')
    p.ax_joint.collections[0].set_alpha(0.3)
    p.ax_joint.set_ylim(df[feature_name].min(), df[feature_name].max())
    p.fig.tight_layout()
    p.fig.subplots_adjust(top=0.95)
make_jointplot ('odometer')
# Alternatively you can use hex_binning
# def make_joint_hexplot(feature_name):
#     p = sns.jointplot(data=df, y=feature_name, x=target_name, height=10, ratio=1, kind="hex")
#     p.ax_joint.set_ylim(0, df[feature_name].quantile(0.999))
#     p.ax_joint.set_xlim(0, df[target_name].quantile(0.999))
#     p.fig.suptitle(feature_name + ' Distribution')

Here is another example of a jointplot for the variable ‘condition.’

# detailed univariate and bivariate analysis of 'condition' using a jointplot
make_jointplot('condition')
Dotplot that shows the relationship between two variables: car condition vs sale price

The graphs show a linear relationship between the price for the condition and the odometer value.

4.2 Correlation Matrix

Correlation analysis is a technique to quantify the dependency between numeric features and a target variable. Different ways exist to calculate the correlation coefficient. For example, we can use Pearson correlation (linear relation), Kendall correlation (ordinal association), or Spearman (monotonic dependence).

The example below uses Pearson correlation, which concentrates on the linear relationship between two variables. The Pearson correlation score lies between -1 and 1. General interpretations of the absolute value of the correlation coefficient are:

  • .00-.19 “very weak”
  • .20-.39 “weak”
  • .40-.59 “moderate”
  • .60-.79 “strong”
  • .80-1.0 “very strong”

More information on the Pearson correlation can be found here and in this article on the correlation between covid-19 and the stock market.

We will calculate a correlation matrix that provides the correlation coefficient for all features in our subset, incl. sale_price.

# 4.1 Correlation Matrix
# correlation heatmap allows us to identify highly correlated explanatory variables and reduce collinearity
plt.figure(figsize = (9,8))
plt.yticks(rotation=0)
correlation = df.corr()
ax =  sns.heatmap(correlation, cmap='GnBu',square=True, linewidths=.1, cbar_kws={"shrink": .82},annot=True,
            fmt='.1',annot_kws={"size":10})
sns.set(font_scale=0.8)
for f in ax.texts:
        f.set_text(f.get_text())
Heatmap in Python that shows the correlation between selected variables in our car dataset

All our remaining numeric features strongly correlate with price (positive or negative). However, this is not all that matters. Ideally, we want to have features that have a low correlation with each other. We can see that prod_year and condition are moderately correlated (coefficient: 0.5). Because prod_year is more correlated with price (coefficient: 0.6) than condition (coefficient: 0.5), we drop the condition variable.

df.drop(columns='condition', inplace=True)

Step #5 Data Preprocessing

Now our subset contains the following variables:

  • prod_year
  • maker
  • model
  • trim
  • body_type
  • odometer
  • int_color
  • sale_price

Next, we prepare the data for use as input to train a regression model. Before we train the model, we need to make a few final preparations. For example, we use a label encoder to replace the strong_values of the categorical variables with numeric values.

# encode categorical variables
def encode_categorical_variables(df):
    # create a list of categorical variables that we want to encode
    categorical_list = [x for x in df.columns if is_string_dtype(df[x])]
    le = LabelEncoder()
    # apply the encoding to the categorical variables
    # because the apply() function has no inplace argument,  we use the following syntax to transform the df
    df[categorical_list] = df[categorical_list].apply(LabelEncoder().fit_transform)
    return df
df_final_subset = encode_categorical_variables(df)
df_all_ = encode_categorical_variables(df_all)
# create a copy of the dataframe but without the target variable
df_without_target = df.drop(columns=[target_name])
df_final_subset.head()
	prod_year	maker	model	trim	body_type	odometer	int_color	sale_price	date
0	2015		23		594		794		31			16639.0		0			21500		8
1	2015		34		59		98		32			5554.0		0			10900		17
2	2014		2		46		180		32			14414.0		0			49750		8
3	2015		34		59		98		32			11398.0		0			14100		13
4	2015		7		325		789		32			14538.0		0			7200		158

Step #6 Splitting the Data and Training the Model

To ensure that our regression model does not know the target variable, we separate car price (y) from features (x). Last, we split the data into separate datasets for training and testing. The result is four different data sets: x_train, y_train, x_test, and y_test.

Once the split function has prepared the datasets, we the regression model. Our model uses the Random Decision Forest algorithm from the scikit learn package. As a so-called ensemble model, the Random Forest is a robust Machine Learning algorithm. It considers predictions from a set of multiple independent estimators.

The Random Forest algorithm has a wide range of hyperparameters. While we could optimize our model further by testing various configurations (hyperparameter tuning), this is not the focus of this article. Therefore, we will use the default hyperparameters for our model as defined by scikit-learn. Please visit one of my recent articles on hyperparameter tuning, if you want to learn more about this topic.

For comparison reasons, we train two models—one model with our subset of selected features. The second model uses all features, cleansed but without any further manipulations.

We use shuffled cross-validation (cv=5) to evaluate our model’s performance on different data folds.

def splitting(df, name):
    # separate labels from training data
    X = df.drop(columns=[target_name])
    y = df[target_name] #Prediction label
    # split the data into x_train and y_train data sets
    X_train, X_test, y_train, y_test = train_test_split(X, y, train_size=0.7, random_state=0)
    # print the shapes: the result is: (rows, training_sequence, features) (prediction value, )
    print(name + '')
    print('train: ', X_train.shape, y_train.shape)
    print('test: ', X_test.shape, y_test.shape)
    return X, y, X_train, X_test, y_train, y_test
# train the model
def train_model(X, y, X_train, y_train):
    estimator = RandomForestRegressor()
    cv = ShuffleSplit(n_splits=5, test_size=0.3, random_state=0)
    scores = cross_val_score(estimator, X, y, cv=cv)
    estimator.fit(X_train, y_train)
    return scores, estimator
# train the model with the subset of selected features
X_sub, y_sub, X_train_sub, X_test_sub, y_train_sub, y_test_sub = splitting(df_final_subset, 'subset')
scores_sub, estimator_sub = train_model(X_sub, y_sub, X_train_sub, y_train_sub)

# train the model with all features
X_all, y_all, X_train_all, X_test_all, y_train_all, y_test_all = splitting(df_all_, 'fullset')
scores_all, estimator_all = train_model(X_all, y_all, X_train_all, y_train_all)
subset
train:  (76592, 8) (76592,)
test:  (32826, 8) (32826,)

Step #7 Comparing Regression Models

Finally, we want to see how the model performs and how its performance compares against the model that uses all variables.

7.1 Model Scoring

We use different regression metrics to measure the performance. Then we create a barplot that compares the performance scores across the different validation folds (due to cross-validation).

# 7.1 Model Scoring
def create_metrics(scores, estimator, X_test, y_test, col_name):
    scores_df = pd.DataFrame({col_name:scores})
    # predict on the test set
    y_pred = estimator.predict(X_test)
    y_df = pd.DataFrame(y_test)
    y_df['PredictedPrice']=y_pred
    # Mean Absolute Error (MAE)
    MAE = mean_absolute_error(y_test, y_pred)
    print('Mean Absolute Error (MAE): ' + str(np.round(MAE, 2)))
    # Mean Absolute Percentage Error (MAPE)
    MAPE = mean_absolute_percentage_error(y_test, y_pred)
    print('Mean Absolute Percentage Error (MAPE): ' + str(np.round(MAPE*100, 2)) + ' %')

    # calculate the feature importance scores
    r = permutation_importance(estimator, X_test, y_test, n_repeats=30, random_state=0)
    data_im = pd.DataFrame(r.importances_mean, columns=['feature_permuation_score'])
    data_im['feature_names'] = X_test.columns
    data_im = data_im.sort_values('feature_permuation_score', ascending=False)

    return scores_df, data_im
scores_df_sub, data_im_sub = create_metrics(scores_sub, estimator_sub, X_test_sub, y_test_sub, 'subset')
scores_df_all, data_im_all = create_metrics(scores_all, estimator_all, X_test_all, y_test_all, 'fullset')
scores_df = pd.concat([scores_df_sub, scores_df_all],  axis=1)
# visualize how the two models have performed in each fold
fig, ax = plt.subplots(figsize=(10, 6))
scores_df.plot(y=["subset", "fullset"], kind="bar", ax=ax)
ax.set_title('Cross validation scores')
ax.set(ylim=(0, 1))
ax.tick_params(axis="x", rotation=0, labelsize=10, length=0)
Mean Absolute Error (MAE): 1643.39
Mean Absolute Percentage Error (MAPE): 24.36 %
Mean Absolute Error (MAE): 1813.78
Mean Absolute Percentage Error (MAPE): 25.23 %
barplot that visualizes cross validation for a car price regression model

The subset model achieves an absolute percentage error of around 24%, which is not so bad. But more importantly, our model performs better than the model that uses all features. However, the subset model is less complex as it only uses eight features instead of 12. So it is easier to understand and less costly to train.

7.2 Feature Permutation Importance Scores

Next, we calculate feature importance scores. In this way, we can determine which features attribute the most to the predictive power of our model. Feature importance scores are a useful tool in the feature engineering process, as they provide insights into how the features in our subset contribute to the overall performance of our predictive model. Features with low importance scores can be eliminated from the subset or replaced with other features.

Again we will compare our subset model to the model that uses all available features from the initial dataset.

# compare the feature importance scores of the subset model to the fullset model
fig, axs = plt.subplots(1, 2, figsize=(20, 8))
sns.barplot(data=data_im_sub, y='feature_names', x="feature_permuation_score", ax=axs[0])
axs[0].set_title("Feature importance scores of the subset model")
sns.barplot(data=data_im_all, y='feature_names', x="feature_permuation_score", ax=axs[1])
axs[1].set_title("Feature importance scores of the fullset model")
Barplots that compare feature importance between the full dataset model and the subset model

In the subset model, most features are relevant to the model’s performance. Only date and int_color do not seem to have a significant impact. For the full set model, five out of 12 features hardly contribute to the model performance (date, int_color, ext_color, state, transmission_type).

Once you have a strong subset of features, you can automate the feature selection process using different techniques, e.g., forward or backward selection. Automated feature selection techniques will test different model variants with varying feature combinations to determine the best input dataset. This step is often done at the end of the feature engineering process. However, this is something for another article.

Conclusions

That’s it for now! This tutorial has presented an exploratory approach to feature exploration, engineering, and selection. You have gained an overview of tools and graphs that are useful in identifying and preparing features. The second part was a Python hands-on tutorial. We followed an exploratory feature engineering process to build a regression model for car prices. We used various techniques to discover and sort features and make a vital feature subset. These techniques include data cleansing, descriptive statistics, and univariate and bivariate analysis (incl. correlation). We also used some techniques for feature manipulation, including binning. Finally, we compared our subset model to one that uses all available data.

If you take away one learning from this article, remember that in machine learning, less is often more. So training classic machine learning models on carefully curated feature subsets likely outperforms models that use all available information.

I hope this article was helpful. I am always trying to improve and learn from my audience. So, if you have any questions or suggestions, please write them in the comments.

Sources and Further Reading

  1. Zheng and Casari (2018) Feature Engineering for Machine Learning
  2. David Forsyth (2019) Applied Machine Learning Springer
  3. Chip Huyen (2022) Designing Machine Learning Systems: An Iterative Process for Production-Ready Applications

The links above to Amazon are affiliate links. By buying through these links, you support the Relataly.com blog and help to cover the hosting costs. Using the links does not affect the price.

Stock-market prediction is a typical regression problem. To learn more about feature engineering for stock-market prediction, check out this article on multivariate stock-market forecasting.

The post Feature Engineering and Selection for Regression Models with Python and Scikit-learn appeared first on relataly.com.

]]> https://www.relataly.com/exploratory-feature-preparation-for-regression-with-python-and-scikit-learn/8832/feed/ 1 8832 Mastering Multivariate Stock Market Prediction with Python: A Guide to Effective Feature Engineering Techniques https://www.relataly.com/feature-engineering-for-multivariate-time-series-models-with-python/1813/ https://www.relataly.com/feature-engineering-for-multivariate-time-series-models-with-python/1813/#comments Mon, 29 Jun 2020 21:47:28 +0000 https://www.relataly.com/?p=1813 Are you interested in learning how multivariate forecasting models can enhance the accuracy of stock market predictions? Look no further! While traditional time series data provides valuable insights into historical trends, multivariate forecasting models utilize additional features to identify patterns and predict future price movements. This process, known as “feature engineering,” is a crucial step ... Read more

The post Mastering Multivariate Stock Market Prediction with Python: A Guide to Effective Feature Engineering Techniques appeared first on relataly.com.

]]>

Are you interested in learning how multivariate forecasting models can enhance the accuracy of stock market predictions? Look no further! While traditional time series data provides valuable insights into historical trends, multivariate forecasting models utilize additional features to identify patterns and predict future price movements. This process, known as “feature engineering,” is a crucial step in creating accurate stock market forecasts.

In this article, we dive into the world of feature engineering and demonstrate how it can improve stock market predictions. We explore popular financial analysis metrics, including Bollinger bands, RSI, and Moving Averages, and show how they can be used to create powerful forecasting models.

But we don’t just stop at theory. We provide a hands-on tutorial using Python to prepare and analyze time-series data for stock market forecasting. We leverage the power of recurrent neural networks with LSTM layers, based on the Keras library, to train and test different model variations with various feature combinations.

By the end of this article, you’ll have a thorough understanding of feature engineering and how it can improve the accuracy of stock market predictions. So, buckle up and get ready to discover how multivariate forecasting models can take your stock market analysis to the next level!

New to time series modeling?
Consider starting with the following tutorial on univariate time series models: Stock-market forecasting using Keras Recurrent Neural Networks and Python.

Disclaimer: This article does not constitute financial advice. Stock markets can be very volatile and are generally difficult to predict. Predictive models and other forms of analytics applied in this article only illustrate machine learning use cases.

A cartoon-style illustration of a cute animal, possibly a raccoon, sitting at a desk and working on a laptop. The animal is wearing glasses and appears to be focused on a screen displaying graphs and charts related to time series analysis. In the background, there are books, a clock, and other office supplies. This image represents the concept of feature engineering, a process of selecting and transforming data features to improve machine learning models, particularly for time series data. Midjourney
Squirrels mastered the art of multivariate feature engineering for time series analysis a long time ago. You can do it too! Image generated with Midjourney

Feature Engineering for Stock Market Forecasting – Borrowing Features from Chart Analysis

The idea behind multivariate time series models is to feed the model with additional features that improve prediction quality. An example of such an additional feature is a “moving average.” Adding more features does not automatically improve predictive performance but increases the time needed to train the models. The challenge is to find the right combination of features and to create an input form that allows the model to recognize meaningful patterns. There is no way around conducting experiments and trying out feature combinations. This process of trial and error can be time-consuming. It is, therefore, helping to build upon established indicators.

In stock market forecasting, we can use indicators from chart analysis. This domain forecasts future prices by studying historical prices and trading volume. The underlying idea is that specific patterns or chart formations in the data can signal the timing of beneficial buying or selling decisions. We can borrow indicators from this discipline and use them as input features.

When we develop predictive machine learning models, the difference from chart analysis is that we do not aim to analyze the chart ourselves manually, but try to create a machine learning model, for example, a recurrent neural network, that does the job for us.

Feature engineering for multivariate stock market prediction - A multivariate time series forecast. Keras, Scikit-Learn, Python, Tutorial
A multivariate time-series forecast, as we will create it in this article. Exemplary chart with technical indicators (Bollinger bands, RSI, and Double-EMA)

Stock Market Forecasting – Does this really Work?

It is essential to point out that the effectiveness of chart analysis and algorithmic trading is controversial. There is at least as much controversy about whether it is possible to predict the price of stock markets with neural networks. Various studies and researchers have examined the effectiveness of chart analysis with different results. One of the most significant points of criticism is that it cannot take external events into account. Nevertheless, many financial analysts consider financial indicators when making investment decisions, so a lot of money is moved simply because many people believe in statistical indicators.

So without knowing how well this will work, it is worth an attempt to feed a neural network with different financial indicators. But first and foremost, I see this as an excellent way to show how feature engineering works. Just make sure not to rely on the predictions of these models blindly.

Also: Stock Market Prediction using Univariate Recurrent Neural Networks

Selected Statistical Indicators

The following indicators are commonly used in chart analysis and may be helpful when creating forecasting models:

  • Relative Strength Index
  • Simple Moving Averages
  • Exponential Moving Averages
  • Bolliger Bands

Relative Strength Index (RSI)

The Relative Strength Index (RSI) is one of the most commonly used oscillating indicators. In 1978, Welles Wilder developed it to determine the momentum of price movements and compare the strength of price losses in a period with price gains. It can take percentage values between 0 and 100.

Reference lines determine how long an existing trend will last before expecting a trend reversal. In other words, when the price is heavily oversold or overbought, one should expect a trend reversal.

  • The reference line is at 40% (oversold) and 80% (overbought) with an upward trend.
  • The reference line is at 20% (oversold) and 60% (overbought) with a downtrend.

The formula for the RSI is as follows:

  • Calculate the sum of all positive and negative price changes in a period (e.g., 30 days):
  • We then calculate the mean value of the sums with the following formula:
  • Finally, we calculate the RSI with the following formula:
feature engineering for stock price prediction: formula for the rsi, Keras, Scikit-Learn, Python, Tutorial
feature engineering for stock price prediction: formula for the rsi, Keras, Scikit-Learn, Python, Tutorial
feature engineering for stock price prediction: formula for the rsi,Keras, Scikit-Learn, Python, Tutorial

Simple Moving Averages (SMA)

Simple Moving Averages (SMA) is another technical indicator that financial analysts use to determine if a price trend will continue or reverse. The SMA is the average sum of all values within a certain period. Financial analysts pay close attention to the 200-day SMA (SMA-200). When the price crosses the SMA, this may signal a trend reversal. Furthermore, we often use SMAs for 50 (SMA-50) and 100 days (SMA-100) periods. In this regard, two popular trading patterns include the death cross and a golden cross.

  • A death cross occurs when the trend line of the SMA-50/100 crosses below the 200-day SMA. This suggests that a falling trend will likely accelerate downwards.
  • A golden cross occurs when the trend line of the SMA-50/100 crosses over the 200-day SMA, suggesting a rising trend will likely accelerate upwards.

We can use the SMA in the input shape of our model simply by measuring the distance between two trendlines.

Exponential Moving Averages (EMA)

The exponential moving average (EMA) is another lagging trend indicator. Like the SMA, the EMA measures the strength of a price trend. The difference between SMA and EMA is that the SMA assigns equal values to all price points, while the EMA uses a multiplier that weights recent prices higher.

The formula for the EMA is as follows: Calculating the EMA for a given data point requires past price values. For example, to calculate the SMA for today, based on 30 past values, we calculate the average price values for the past 30 days. We then multiply the result by a weighting factor that weighs the EMA. The formula for this multiplier is as follows: Smoothing factor / (1+ days)

It is common to use different smoothing factors. For a 30-day moving average, the multiplier would be [2/(30+1)]= 0.064.

As soon as we have calculated the EMA for the first data point, we can use the following formula to calculate the ema for all subsequent data points: EMA = Closing price x multiplier + EMA (previous day) x (1-multiplier)

Bollinger Bands

Bollinger Bands are a popular technical analysis tool used to identify market volatility and potential price movements in financial markets. They are named after their creator, John Bollinger.

Bollinger Bands consist of three lines that are plotted on a price chart. The middle line is a simple moving average (SMA) of the asset price over a specified period (typically 20 days). The upper and lower lines are calculated by adding and subtracting a multiple (usually two) of the standard deviation of the asset price from the middle line.

The upper band is calculated as: Middle band + (2 x Standard deviation) The lower band is calculated as: Middle band – (2 x Standard deviation)

The standard deviation is a measure of how much the asset price deviates from the average. When the asset price is more volatile, the bands widen, and when the price is less volatile, the bands narrow.

Traders use Bollinger Bands to identify potential buy or sell signals. When the price touches or crosses the upper band, it may be a sell signal, indicating that the asset is overbought. Conversely, when the price touches or crosses the lower band, it may be a buy signal, indicating that the asset is oversold.

Feature Engineering for Time Series Prediction Models in Python

In the following, this tutorial will guide you through the process of implementing a multivariate time series prediction model for the NASDAQ stock market index. Our aim is to equip you with the knowledge and practical skills required to create a powerful predictive model that can effectively forecast stock prices.

Throughout this tutorial, we will take you through a step-by-step approach to building a multivariate time series prediction model. You will learn how to implement and utilize different features to train and measure the performance of your model. Our goal is to ensure that you are not only able to understand the underlying concepts of multivariate time series prediction, but that you are also capable of applying these concepts in a practical setting.

The code is available on the GitHub repository.

View on GitHub Relataly GitHub Repo
Let's do some feature engineering for machine learning!
Let’s do some feature engineering for machine learning!

Prerequisites

Before starting the coding part, make sure that you have set up your Python 3 environment and required packages. If you don’t have an environment, follow this tutorial to set up the Anaconda environment.

Also, make sure you install all required packages. In this tutorial, we will be working with the following standard packages:

In addition, we will be using Keras (2.0 or higher) with Tensorflow backend to train the neural network, the machine learning library scikit-learn, and the pandas-DataReader. You can install these packages using the following console commands:

  • pip install <package name>
  • conda install <package name> (if you are using the anaconda packet manager)

Step #1 Load the Data

Let’s start by setting up the imports and loading the data. Our Python project will use price data from the NASDAQ composite index (symbol: ^IXIC) from yahoo.finance.com.

# Time Series Forecasting - Feature Engineering For Multivariate Models (Stock Market Prediction Example)
# A tutorial for this file is available at www.relataly.com

import math # Mathematical functions
import numpy as np # Fundamental package for scientific computing with Python
import pandas as pd # Additional functions for analysing and manipulating data
from datetime import date # Date Functions
import matplotlib.pyplot as plt # Important package for visualization - we use this to plot the market data
import matplotlib.dates as mdates # Formatting dates
from sklearn.metrics import mean_absolute_error, mean_squared_error # Packages for measuring model performance / errors
import tensorflow as tf
from tensorflow.keras.models import Sequential # Deep learning library, used for neural networks
from tensorflow.keras.layers import LSTM, Dense, Dropout # Deep learning classes for recurrent and regular densely-connected layers
from tensorflow.keras.callbacks import EarlyStopping # EarlyStopping during model training
from sklearn.preprocessing import RobustScaler # This Scaler removes the median and scales the data according to the quantile range to normalize the price data
#from keras.optimizers import Adam # For detailed configuration of the optimizer
import seaborn as sns # Visualization
sns.set_style('white', { 'axes.spines.right': False, 'axes.spines.top': False})


# check the tensorflow version and the number of available GPUs
print('Tensorflow Version: ' + tf.__version__)
physical_devices = tf.config.list_physical_devices('GPU')
print("Num GPUs:", len(physical_devices))

# Setting the timeframe for the data extraction
end_date =  date.today().strftime("%Y-%m-%d")
start_date = '2010-01-01'

# Getting NASDAQ quotes
stockname = 'NASDAQ'
symbol = '^IXIC'

# You can either use webreader or yfinance to load the data from yahoo finance
# import pandas_datareader as webreader
# df = webreader.DataReader(symbol, start=start_date, end=end_date, data_source="yahoo")

import yfinance as yf #Alternative package if webreader does not work: pip install yfinance
df = yf.download(symbol, start=start_date, end=end_date)

# Quick overview of dataset
df.head()
Tensorflow Version: 2.5.0
Num GPUs: 1
[*********************100%***********************]  1 of 1 completed
			Open		High		Low	Close	Adj 		Close		Volume
Date
2009-12-31	2292.919922	2293.590088	2269.110107	2269.149902	2269.149902	1237820000
2010-01-04	2294.409912	2311.149902	2294.409912	2308.419922	2308.419922	1931380000
2010-01-05	2307.270020	2313.729980	2295.620117	2308.709961	2308.709961	2367860000
2010-01-06	2307.709961	2314.070068	2295.679932	2301.090088	2301.090088	2253340000
2010-01-07	2298.090088	2301.300049	2285.219971	2300.050049	2300.050049	2270050000

Step #2 Explore the Data

Let’s take a quick look at the data by creating line charts for the columns of our data set.

# Plot line charts
df_plot = df.copy()

ncols = 2
nrows = int(round(df_plot.shape[1] / ncols, 0))

fig, ax = plt.subplots(nrows=nrows, ncols=ncols, sharex=True, figsize=(14, 7))
for i, ax in enumerate(fig.axes):
        sns.lineplot(data = df_plot.iloc[:, i], ax=ax)
        ax.tick_params(axis="x", rotation=30, labelsize=10, length=0)
        ax.xaxis.set_major_locator(mdates.AutoDateLocator())
fig.tight_layout()
plt.show()
feature engineering stock market prediction, python tutorial, keras, scikit-learn

Our initial dataset includes six features: High, Low, Open, Close, Volumen, and Adj Close.

Step #3 Feature Engineering

Now comes the exciting part – we will implement additional features. We use various indicators from chart analysis, such as averages for different periods and stochastic oscillators to measure price momentum.

# Indexing Batches
train_df = df.sort_values(by=['Date']).copy()

# Adding Month and Year in separate columns
d = pd.to_datetime(train_df.index)
train_df['Day'] = d.strftime("%d")
train_df['Month'] = d.strftime("%m")
train_df['Year'] = d.strftime("%Y")
train_df
			Open		High		Low			Close		Adj Close	Volume		Day	Month	Year
Date
2009-12-31	2292.919922	2293.590088	2269.110107	2269.149902	2269.149902	1237820000	31	12		2009
2010-01-04	2294.409912	2311.149902	2294.409912	2308.419922	2308.419922	1931380000	04	01		2010
2010-01-05	2307.270020	2313.729980	2295.620117	2308.709961	2308.709961	2367860000	05	01		2010
2010-01-06	2307.709961	2314.070068	2295.679932	2301.090088	2301.090088	2253340000	06	01		2010
2010-01-07	2298.090088	2301.300049	2285.219971	2300.050049	2300.050049	2270050000	07	01		2010

We create a set of indicators for the training data with the following code. However, we will make one more restriction in the next step since a model with all these indicators does not achieve good results and would take far too long to train on a local computer.

# Feature Engineering
def createFeatures(df):
    df = pd.DataFrame(df)


    df['Close_Diff'] = df['Adj Close'].diff()

    # Moving averages - different periods
    df['MA200'] = df['Close'].rolling(window=200).mean()
    df['MA100'] = df['Close'].rolling(window=100).mean()
    df['MA50'] = df['Close'].rolling(window=50).mean()
    df['MA26'] = df['Close'].rolling(window=26).mean()
    df['MA20'] = df['Close'].rolling(window=20).mean()
    df['MA12'] = df['Close'].rolling(window=12).mean()

    # SMA Differences - different periods
    df['DIFF-MA200-MA50'] = df['MA200'] - df['MA50']
    df['DIFF-MA200-MA100'] = df['MA200'] - df['MA100']
    df['DIFF-MA200-CLOSE'] = df['MA200'] - df['Close']
    df['DIFF-MA100-CLOSE'] = df['MA100'] - df['Close']
    df['DIFF-MA50-CLOSE'] = df['MA50'] - df['Close']

    # Moving Averages on high, lows, and std - different periods
    df['MA200_low'] = df['Low'].rolling(window=200).min()
    df['MA14_low'] = df['Low'].rolling(window=14).min()
    df['MA200_high'] = df['High'].rolling(window=200).max()
    df['MA14_high'] = df['High'].rolling(window=14).max()
    df['MA20dSTD'] = df['Close'].rolling(window=20).std()

    # Exponential Moving Averages (EMAS) - different periods
    df['EMA12'] = df['Close'].ewm(span=12, adjust=False).mean()
    df['EMA20'] = df['Close'].ewm(span=20, adjust=False).mean()
    df['EMA26'] = df['Close'].ewm(span=26, adjust=False).mean()
    df['EMA100'] = df['Close'].ewm(span=100, adjust=False).mean()
    df['EMA200'] = df['Close'].ewm(span=200, adjust=False).mean()

    # Shifts (one day before and two days before)
    df['close_shift-1'] = df.shift(-1)['Close']
    df['close_shift-2'] = df.shift(-2)['Close']

    # Bollinger Bands
    df['Bollinger_Upper'] = df['MA20'] + (df['MA20dSTD'] * 2)
    df['Bollinger_Lower'] = df['MA20'] - (df['MA20dSTD'] * 2)

    # Relative Strength Index (RSI)
    df['K-ratio'] = 100*((df['Close'] - df['MA14_low']) / (df['MA14_high'] - df['MA14_low']) )
    df['RSI'] = df['K-ratio'].rolling(window=3).mean()

    # Moving Average Convergence/Divergence (MACD)
    df['MACD'] = df['EMA12'] - df['EMA26']

    # Replace nas
    nareplace = df.at[df.index.max(), 'Close']
    df.fillna((nareplace), inplace=True)

    return df

Now that we have created several features, we will limit them. We can now choose from these features and test how different feature combinations affect model performance.

# List of considered Features
FEATURES = [
#             'High',
#             'Low',
#             'Open',
              'Close',
#             'Volume',
#             'Day',
#             'Month',
#             'Year',
#             'Adj Close',
#              'close_shift-1',
#              'close_shift-2',
#             'MACD',
#             'RSI',
#             'MA200',
#             'MA200_high',
#             'MA200_low',
            'Bollinger_Upper',
            'Bollinger_Lower',
#             'MA100',
#             'MA50',
#             'MA26',
#             'MA14_low',
#             'MA14_high',
#             'MA12',
#             'EMA20',
#             'EMA100',
#             'EMA200',
#               'DIFF-MA200-MA50',
#               'DIFF-MA200-MA100',
#             'DIFF-MA200-CLOSE',
#             'DIFF-MA100-CLOSE',
#             'DIFF-MA50-CLOSE'
           ]

# Create the dataset with features
df_features = createFeatures(train_df)

# Shift the timeframe by 10 month
use_start_date = pd.to_datetime("2010-11-01" )
df_features = df_features[df_features.index > use_start_date].copy()

# Filter the data to the list of FEATURES
data_filtered_ext = df_features[FEATURES].copy()

# We add a prediction column and set dummy values to prepare the data for scaling
#data_filtered_ext['Prediction'] = data_filtered_ext['Close']
print(data_filtered_ext.tail().to_string())

# remove Date column before training
dfs = data_filtered_ext.copy()

# Create a list with the relevant columns
assetname_list = [dfs.columns[i-1] for i in range(dfs.shape[1])]

# Create the lineplot
fig, ax = plt.subplots(figsize=(16, 8))
sns.lineplot(data=data_filtered_ext[assetname_list], linewidth=1.0, dashes=False, palette='muted')

# Configure and show the plot
ax.set_title(stockname + ' price chart')
ax.legend()
plt.show
 			Close  			Bollinger_Upper  Bollinger_Lower
Date
2022-05-18  11418.150391     13404.779247     11065.040772
2022-05-19  11388.500000     13285.741255     11005.463725
2022-05-20  11354.620117     13214.664450     10928.073538
2022-05-23  11535.269531     13075.594634     10920.185347
2022-05-24  11264.450195     13035.543222     10837.607755
<function matplotlib.pyplot.show(close=None, block=None)>
Price chart for the nasdaq price index with bollinger bands

Step #4 Scaling and Transforming the Data

Before training our model, we need to transform the data. This step includes scaling the data (to a range between 0 and 1) and dividing it into separate sets for training and testing the prediction model. Most of the code used in this section stems from the previous article on multivariate time-series prediction, which covers the steps to transform the data. So we don’t go into too much detail here.

# Calculate the number of rows in the data
nrows = dfs.shape[0]
np_data_unscaled = np.reshape(np.array(dfs), (nrows, -1))
print(np_data_unscaled.shape)

# Transform the data by scaling each feature to a range between 0 and 1
scaler = RobustScaler()
np_data = scaler.fit_transform(np_data_unscaled)

# Creating a separate scaler that works on a single column for scaling predictions
scaler_pred = RobustScaler()
df_Close = pd.DataFrame(data_filtered_ext['Close'])
np_Close_scaled = scaler_pred.fit_transform(df_Close)
Out: (2619, 6)

Once we have scaled the data, we will split the data into a train and test set. This step creates four datasets x_train and x_test, and y_train and y_test. x_train and x_test contain the data with our selected features. The two sets, y_train and y_test, have the actual values, which our model will try to predict.

# Set the sequence length - this is the timeframe used to make a single prediction
sequence_length = 50 # = number of neurons in the first layer of the neural network

# Split the training data into train and train data sets
# As a first step, we get the number of rows to train the model on 80% of the data
train_data_len = math.ceil(np_data.shape[0] * 0.8)

# Create the training and test data
train_data = np_data[:train_data_len, :]
test_data = np_data[train_data_len - sequence_length:, :]

# The RNN needs data with the format of [samples, time steps, features]
# Here, we create N samples, sequence_length time steps per sample, and 6 features
def partition_dataset(sequence_length, data):
    x, y = [], []
    data_len = data.shape[0]

    for i in range(sequence_length, data_len):
        x.append(data[i-sequence_length:i,:]) #contains sequence_length values 0-sequence_length * columsn
        y.append(data[i, 0]) #contains the prediction values for validation,  for single-step prediction

    # Convert the x and y to numpy arrays
    x = np.array(x)
    y = np.array(y)
    return x, y

# Generate training data and test data
x_train, y_train = partition_dataset(sequence_length, train_data)
x_test, y_test = partition_dataset(sequence_length, test_data)

# Print the shapes: the result is: (rows, training_sequence, features) (prediction value, )
print(x_train.shape, y_train.shape)
print(x_test.shape, y_test.shape)

# Validate that the prediction value and the input match up
# The last close price of the second input sample should equal the first prediction value
print(x_train[1][sequence_length-1][0])
print(y_train[0])
Out:
(1914, 30, 3) (1914,)
(486, 30, 3) (486,)

Step #5 Train the Time Series Forecasting Model

Now that we have prepared the data, we can train our forecasting model. For this purpose, we will use a recurrent neural network from the Keras library. A recurrent neural network (RNN) is a type of artificial neural network that can process sequential data, such as text, audio, or time series data. Unlike traditional feedforward neural networks, in which data flows through the network in only one direction, RNNs have connections that form a directed cycle, allowing information to flow in multiple directions and be processed in a temporal manner.

The model architecture of our RNN looks as follows:

  • LSTM layer that receives a mini-batch as input.
  • LSTM layer that has the same number of neurons as the mini-batch
  • Another LSTM layer that does not return the sequence
  • Dense layer with 32 neurons
  • Dense layer with one neuron that outputs the forecast

The architecture is not too complex and is suitable for experimenting with different features. I arrived at this architecture by trying out different layers and configurations. However, I did not spend too much time fine-tuning the architecture since this tutorial focuses on feature engineering.

During model training, the neural network processes several mini-batches. The shape of the mini-batch is defined by the number of features and the period chosen. Multiplying these two dimensions (number of features x number of time steps) gives the input shape of our model.

The following code defines the model architecture, trains the model, and then prints the training loss curve:

# Configure the neural network model
model = Sequential()

# Configure the Neural Network Model with n Neurons - inputshape = t Timestamps x f Features
n_neurons = x_train.shape[1] * x_train.shape[2]
print('timesteps: ' + str(x_train.shape[1]) + ',' + ' features:' + str(x_train.shape[2]))
model.add(LSTM(n_neurons, return_sequences=True, input_shape=(x_train.shape[1], x_train.shape[2])))
#model.add(Dropout(0.1))
model.add(LSTM(n_neurons, return_sequences=True))
#model.add(Dropout(0.1))
model.add(LSTM(n_neurons, return_sequences=False))
model.add(Dense(32))
model.add(Dense(1, activation='relu'))


# Configure the Model
optimizer='adam'; loss='mean_squared_error'; epochs = 100; batch_size = 32; patience = 8;

# uncomment to customize the learning rate
learn_rate = "standard" # 0.05
# adam = Adam(learn_rate=learn_rate)

parameter_list = ['epochs ' + str(epochs), 'batch_size ' + str(batch_size), 'patience ' + str(patience), 'optimizer ' + str(optimizer) + ' with learn rate ' + str(learn_rate), 'loss ' + str(loss)]
print('Parameters: ' + str(parameter_list))

# Compile and Training the model
model.compile(optimizer=optimizer, loss=loss)
early_stop = EarlyStopping(monitor='loss', patience=patience, verbose=1)
history = model.fit(x_train, y_train, batch_size=batch_size, epochs=epochs, callbacks=[early_stop], shuffle = True,
                  validation_data=(x_test, y_test))

# Plot training & validation loss values
fig, ax = plt.subplots(figsize=(12, 6), sharex=True)
plt.plot(history.history["loss"])
plt.title("Model loss")
plt.ylabel("Loss")
plt.xlabel("Epoch")
ax.xaxis.set_major_locator(plt.MaxNLocator(epochs))
plt.legend(["Train", "Test"], loc="upper left")
plt.show()
timesteps: 50, features:1
Parameters: ['epochs 100', 'batch_size 32', 'patience 8', 'optimizer adam with learn rate standard', 'loss mean_squared_error']
Epoch 1/100
72/72 [==============================] - 9s 55ms/step - loss: 0.0990 - val_loss: 0.2985
Epoch 2/100
72/72 [==============================] - 3s 37ms/step - loss: 0.0932 - val_loss: 0.1768
Epoch 3/100
72/72 [==============================] - 3s 39ms/step - loss: 0.0931 - val_loss: 0.1246
Epoch 4/100
72/72 [==============================] - 3s 37ms/step - loss: 0.0931 - val_loss: 0.0902
Epoch 5/100
72/72 [==============================] - 3s 38ms/step - loss: 0.0929 - val_loss: 0.0846
Epoch 6/100
72/72 [==============================] - 3s 38ms/step - loss: 0.0930 - val_loss: 0.0611
Epoch 7/100
72/72 [==============================] - 3s 38ms/step - loss: 0.0929 - val_loss: 0.0498
Epoch 8/100
72/72 [==============================] - 3s 37ms/step - loss: 0.0928 - val_loss: 0.0208
Epoch 9/100
72/72 [==============================] - 3s 38ms/step - loss: 0.0929 - val_loss: 0.0588
Epoch 10/100
72/72 [==============================] - 3s 37ms/step - loss: 0.0928 - val_loss: 0.0437
Epoch 11/100
72/72 [==============================] - 3s 36ms/step - loss: 0.0928 - val_loss: 0.0192
Epoch 12/100
...
72/72 [==============================] - 3s 38ms/step - loss: 0.0925 - val_loss: 0.0094
Epoch 46/100
72/72 [==============================] - 3s 37ms/step - loss: 0.0925 - val_loss: 0.0113
Epoch 00046: early stopping

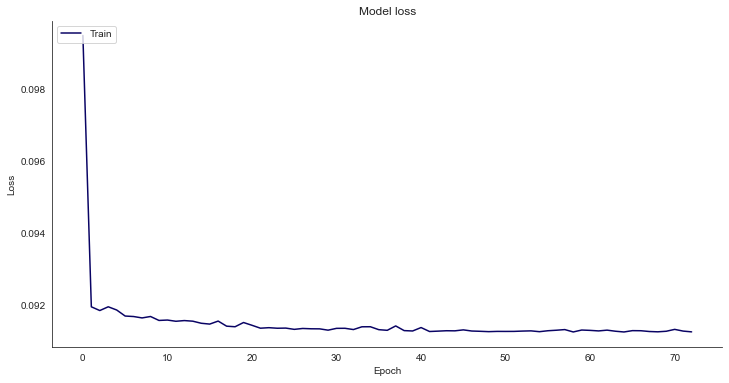

loss curve of our time series prediction model for stock market forecasting

The loss drops quickly, and the training process looks promising.

Step #6 Evaluate Model Performance

If we test a feature, we also want to know how it impacts the performance of our model. Feature Engineering is therefore closely related to evaluating model performance. So, let’s check the prediction performance. For this purpose, we score the model with the test data set (x_test). Then we can compare the predictions with the actual values (y_test) in a lineplot.

# Get the predicted values
y_pred_scaled = model.predict(x_test)

# Unscale the predicted values
y_pred = scaler_pred.inverse_transform(y_pred_scaled)
y_test_unscaled = scaler_pred.inverse_transform(y_test.reshape(-1, 1))
y_test_unscaled.shape

# Mean Absolute Error (MAE)
MAE = mean_absolute_error(y_test_unscaled, y_pred)
print(f'Median Absolute Error (MAE): {np.round(MAE, 2)}')

# Mean Absolute Percentage Error (MAPE)
MAPE = np.mean((np.abs(np.subtract(y_test_unscaled, y_pred)/ y_test_unscaled))) * 100
print(f'Mean Absolute Percentage Error (MAPE): {np.round(MAPE, 2)} %')

# Median Absolute Percentage Error (MDAPE)
MDAPE = np.median((np.abs(np.subtract(y_test_unscaled, y_pred)/ y_test_unscaled)) ) * 100
print(f'Median Absolute Percentage Error (MDAPE): {np.round(MDAPE, 2)} %')

# The date from which on the date is displayed
display_start_date = "2019-01-01"

# Add the difference between the valid and predicted prices
train = pd.DataFrame(dfs['Close'][:train_data_len + 1]).rename(columns={'Close': 'y_train'})
valid = pd.DataFrame(dfs['Close'][train_data_len:]).rename(columns={'Close': 'y_test'})
valid.insert(1, "y_pred", y_pred, True)
valid.insert(1, "residuals", valid["y_pred"] - valid["y_test"], True)
df_union = pd.concat([train, valid])

# Zoom in to a closer timeframe
df_union_zoom = df_union[df_union.index > display_start_date]

# Create the lineplot
fig, ax1 = plt.subplots(figsize=(16, 8))
plt.title("y_pred vs y_test")
plt.ylabel(stockname, fontsize=18)
sns.set_palette(["#090364", "#1960EF", "#EF5919"])
sns.lineplot(data=df_union_zoom[['y_pred', 'y_train', 'y_test']], linewidth=1.0, dashes=False, ax=ax1)

# Create the barplot for the absolute errors
df_sub = ["#2BC97A" if x > 0 else "#C92B2B" for x in df_union_zoom["residuals"].dropna()]
ax1.bar(height=df_union_zoom['residuals'].dropna(), x=df_union_zoom['residuals'].dropna().index, width=3, label='absolute errors', color=df_sub)
plt.legend()
plt.show()
Median Absolute Error (MAE): 547.23
Mean Absolute Percentage Error (MAPE): 4.04 %
Median Absolute Percentage Error (MDAPE): 3.73 %
multivariate feature engineering, prediction results

On average, the predictions of our model deviate from the actual values by about one percent. Although one percent may not sound like a lot, the prediction errors can quickly accumulate to larger values.

Step #7 Overview of Selected Models

In writing this article, I tested various models based on different features. The neural network architecture remained unchanged. Likewise, I kept the hyperparameters the same except for the learning rate. Below are the results of these model variants:

performance of different variations of the multivariate keras neural network model for stock market forecasting

Step #8 Conclusions

Estimating which indicators will lead to good results in advance is difficult. More indicators do not necessarily lead to better results because they increase the model complexity and add data without predictive power. This so-called noise makes it harder for the model to separate important influencing factors from less important ones. Also, each additional indicator increases the time needed to train the model. So there is no way around testing different variants.

Besides the feature, various hyperparameters such as the learning rate, optimizer, batch size, and the selected time frame of the data (sequence_length) impact the model’s performance. Tuning these hyperparameters can further improve model performance.

  • A learning rate of 0.05 achieves the best results from the tested configurations.
  • Of all features, only the Bollinger bands positively affected the model’s performance.
  • As expected, the performance tends to decrease with the number of features.
  • In our case, the hyperparameters seem to affect the performance of the models more than the choice of features.

Finally, we have optimized only a single parameter. We searched for optimal learning rates while leaving all other parameters unchanged, such as the optimizer, the neural network architecture, or the sequence length. Based on the results, we can draw several conclusions:

There is plenty of room for improvement and experimentation. With more time for experiments and computational power, it will undoubtedly be possible to identify better features and model configurations. So, have fun experimenting! 🙂

Summary

In this tutorial, we have delved into the fascinating world of feature engineering for stock market forecasting using Python. By exploring various features from chart analysis, such as RSI, moving averages, and Bollinger bands, we have developed multiple variants of a recurrent neural network that produce distinct prediction models.

Our experiments have shown that the choice of features can have a significant impact on the performance of the prediction model. Therefore, it’s essential to carefully select features and consider their potential impact on the model. Additionally, keep in mind that the most effective features for recognizing patterns in historical data will vary depending on the specific time series data being analyzed.

By following the crucial steps outlined in this tutorial, you now have the knowledge and tools to apply feature engineering techniques to any multivariate time series forecasting problem. With further experimentation and testing, you can fine-tune your models to achieve the best possible results for your specific use case.

We hope you found this tutorial both informative and helpful. If you have any questions or comments, don’t hesitate to reach out and let us know.

And if you want to learn more about feature preparation and exploration, check out my recent article on Exploratory Feature Preparation for Regression Models.

Sources and Further Reading

  1. Charu C. Aggarwal (2018) Neural Networks and Deep Learning
  2. Jansen (2020) Machine Learning for Algorithmic Trading: Predictive models to extract signals from market and alternative data for systematic trading strategies with Python
  3. Aurélien Géron (2019) Hands-On Machine Learning with Scikit-Learn, Keras, and TensorFlow: Concepts, Tools, and Techniques to Build Intelligent Systems
  4. David Forsyth (2019) Applied Machine Learning Springer
  5. Andriy Burkov (2020) Machine Learning Engineering

The links above to Amazon are affiliate links. By buying through these links, you support the Relataly.com blog and help to cover the hosting costs. Using the links does not affect the price.

Books on Applied Machine Learning

The links above to Amazon are affiliate links. By buying through these links, you support the Relataly.com blog and help to cover the hosting costs. Using the links does not affect the price.

The post Mastering Multivariate Stock Market Prediction with Python: A Guide to Effective Feature Engineering Techniques appeared first on relataly.com.

]]> https://www.relataly.com/feature-engineering-for-multivariate-time-series-models-with-python/1813/feed/ 8 1813
